Smart Motion Lighting. Hands-Free Convenience.
Rayzeek RZ037 ceiling-mounted 360° motion sensors automatically light your space when you’re there and save energy when you’re not. Available in high-voltage AC (5A/10A) and low-voltage DC (12V/24V) models, with easy push-button adjustments for time delay, sensitivity, and ambient light (LUX) levels.
FEATURES
- Complete 360° Detection: Full-room PIR motion coverage from the ceiling.
- Advanced PIR + MCU: Stable, reliable performance with precise control.
- Fully Adjustable: Time delay (15s–30min), motion sensitivity (High/Low), and ambient light (LUX) threshold.
- Energy Saver: Helps reduce lighting energy consumption by up to 70%.

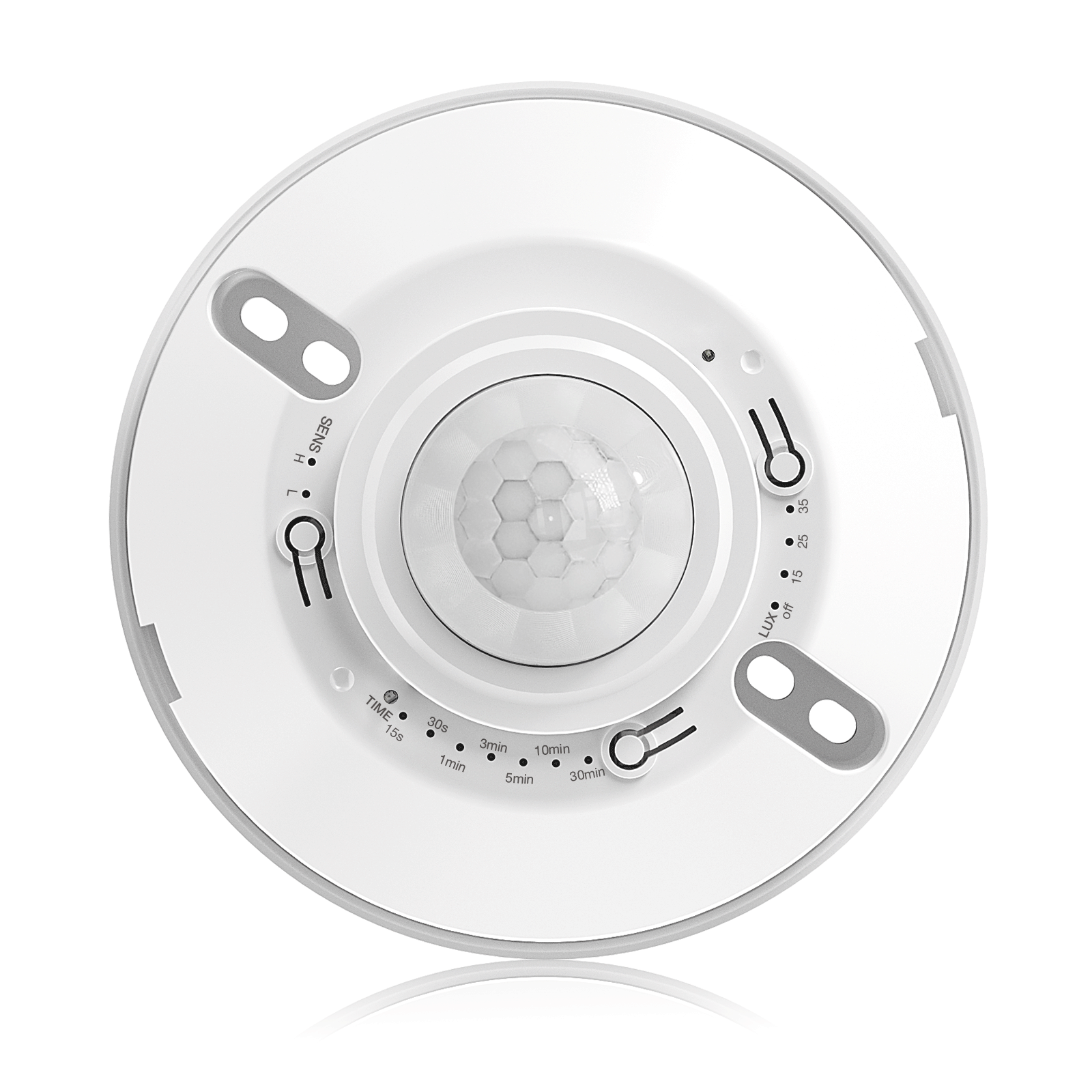

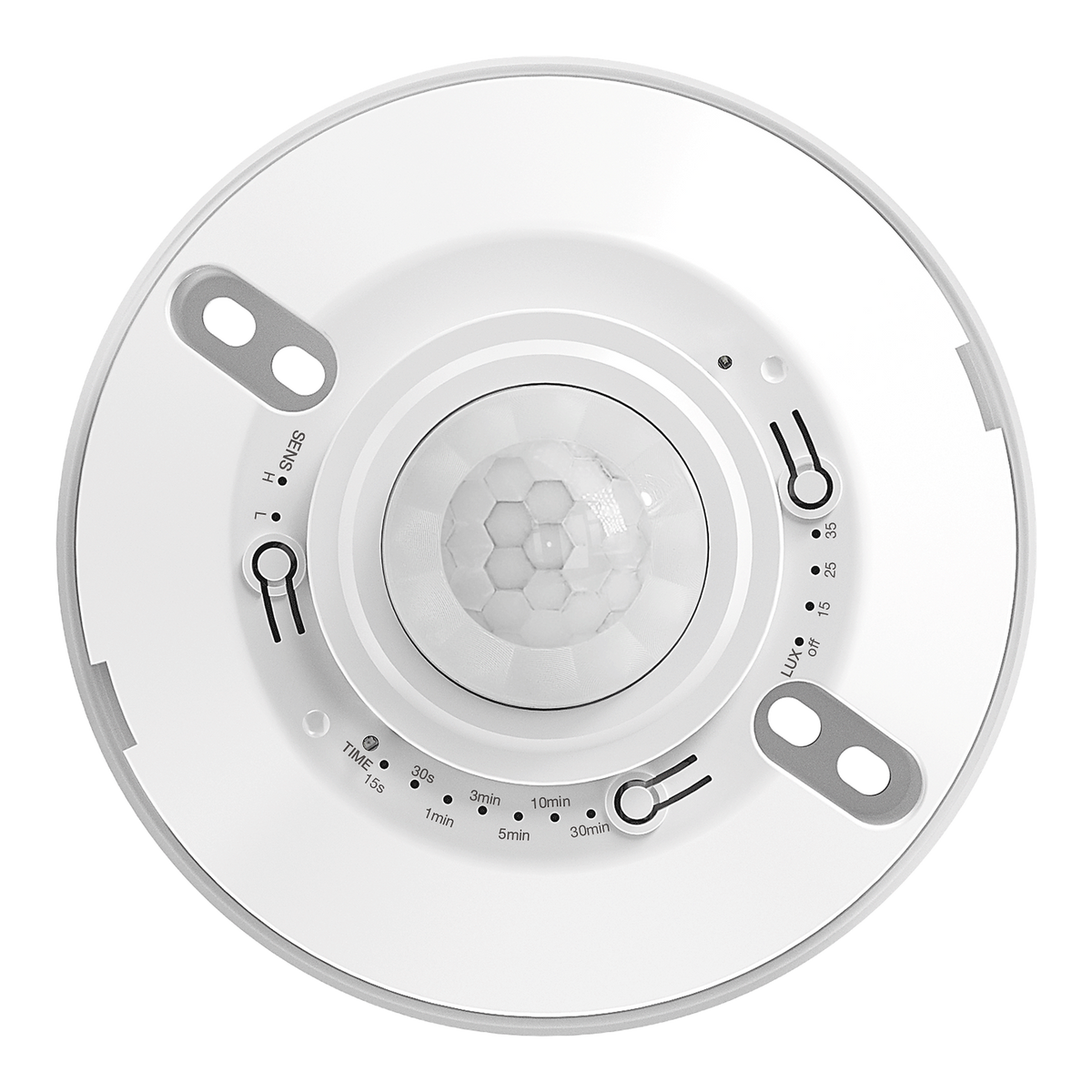

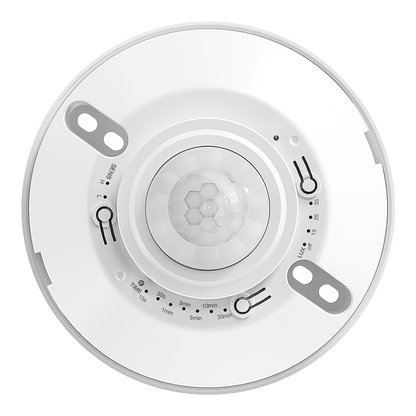

- Simple Button Settings: Push-button adjustments right on the device.
- Warm-Up Safety: On first power-up or after power restore, the load remains off for ~1 minute before normal operation.
SPECIFICATION
-
Models & Max Load:
- RZ037-5A (High Voltage AC, 100–265VAC, 50/60Hz)
- Incandescent/Halogen: 500W @110VAC / 1100W @220VAC
- Fluorescent/Ballast/LED: 250W @110VAC / 500W @220VAC
- RZ037-10A (High Voltage AC, 100–265VAC, 50/60Hz)
- Incandescent/Halogen: 1000W @110VAC / 2200W @220VAC
- Fluorescent/Ballast/LED: 500W @110VAC / 1000W @220VAC
- RZ037-12V/24V (Low Voltage DC, constant voltage)
- Input Voltage: 12VDC / 24VDC (10–30VDC)
- Max Working Current: 10A
- RZ037-5A (High Voltage AC, 100–265VAC, 50/60Hz)
- Detection Range: 360°
- Detection Distance: 8–12 m (clear line-of-sight, at <27°C)
- Adjustable Time Delay: 15s, 30s, 1min, 3min, 5min, 10min, 30min (Default: 1min)
- Adjustable Light Sensor (LUX): 15Lux, 25Lux, 35Lux, or OFF (Default: 25Lux)
-
Power Source:
- RZ037-5A / RZ037-10A: 100–265VAC, 50/60Hz
- RZ037-12V/24V: 12–24VDC constant voltage (10–30VDC)
- Recommended Installation Height: 2.5–3.5 m
- Operating Temperature: -10°C to +40°C
- Working Humidity: < 93% RH
- Motion Detection Speed: 0.6–1.5 m/s
-
Notes:
- Light sensor responds to thermal/IR light sources (e.g., sunlight, incandescent) and is less sensitive to “cold” sources (e.g., LED, fluorescent).
- RZ037-12V/24V must be powered by a constant-voltage DC supply.
PRODUCT OVERVIEW

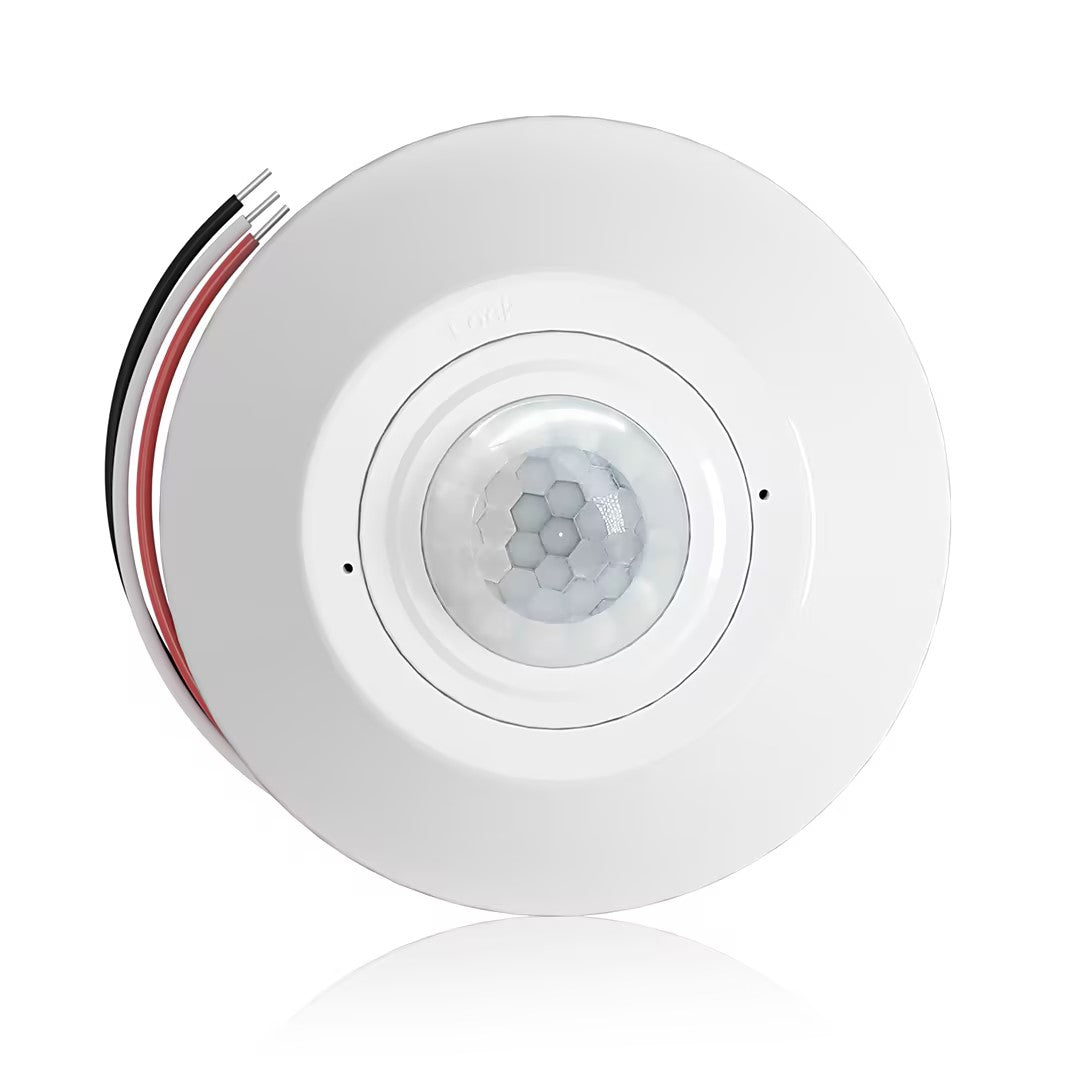

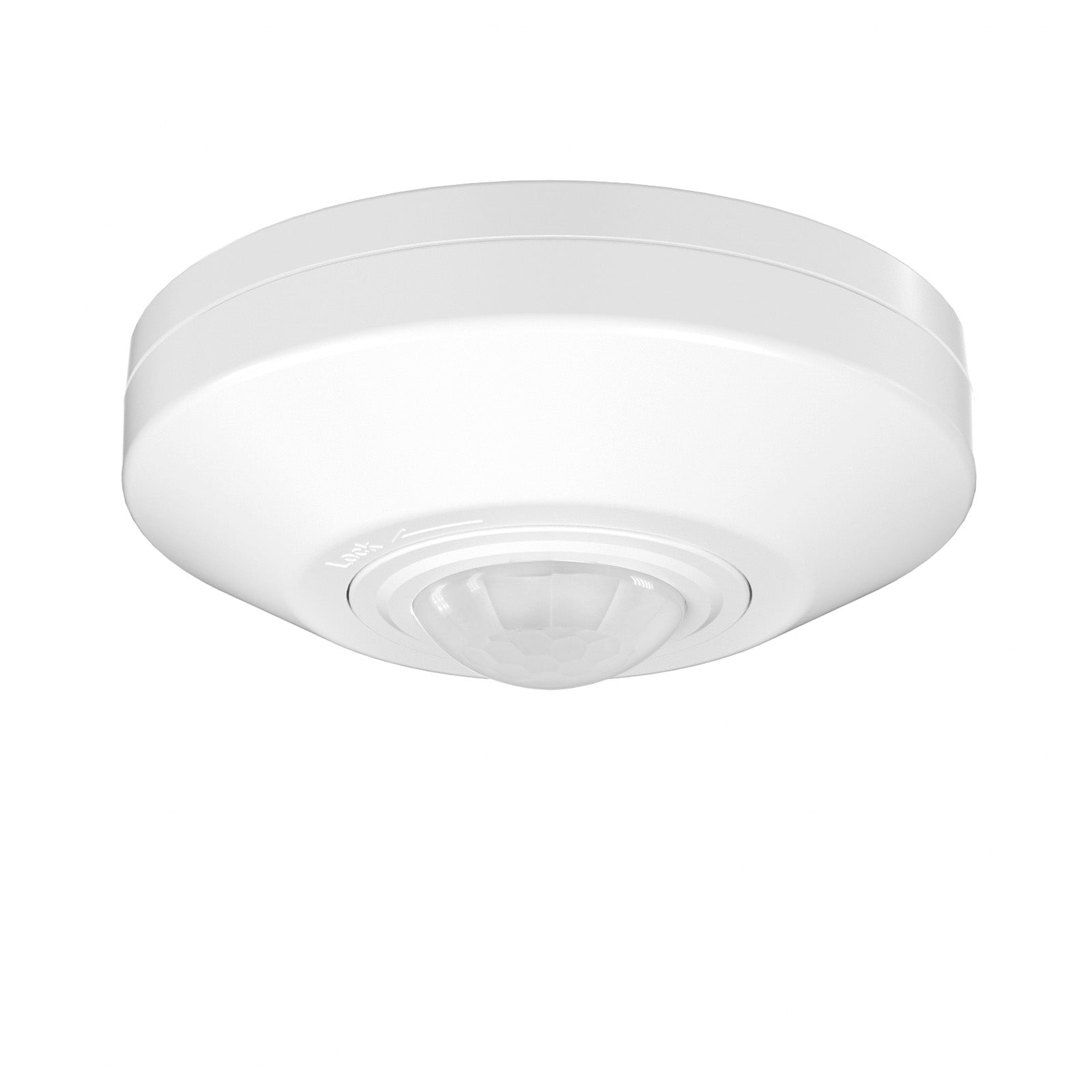

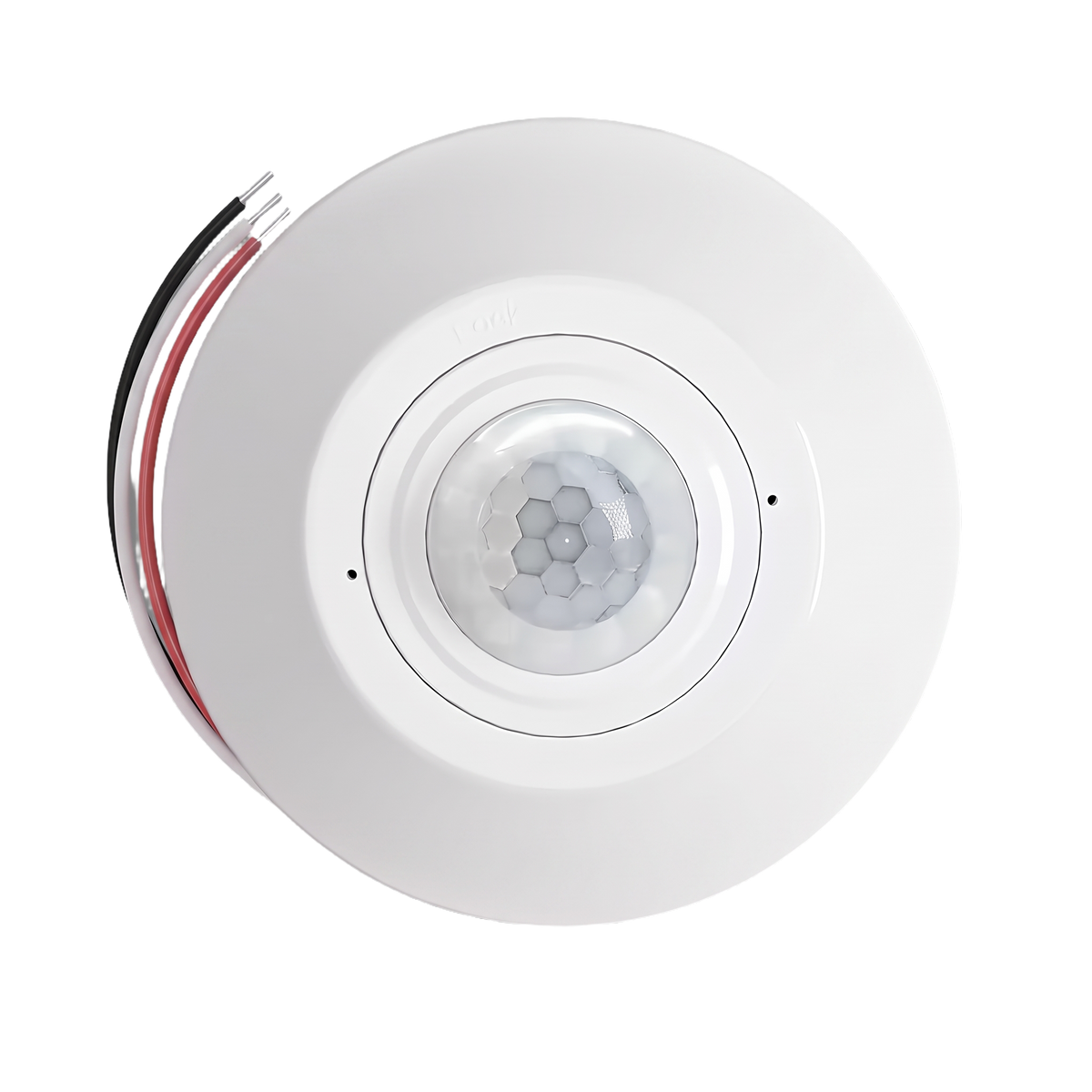

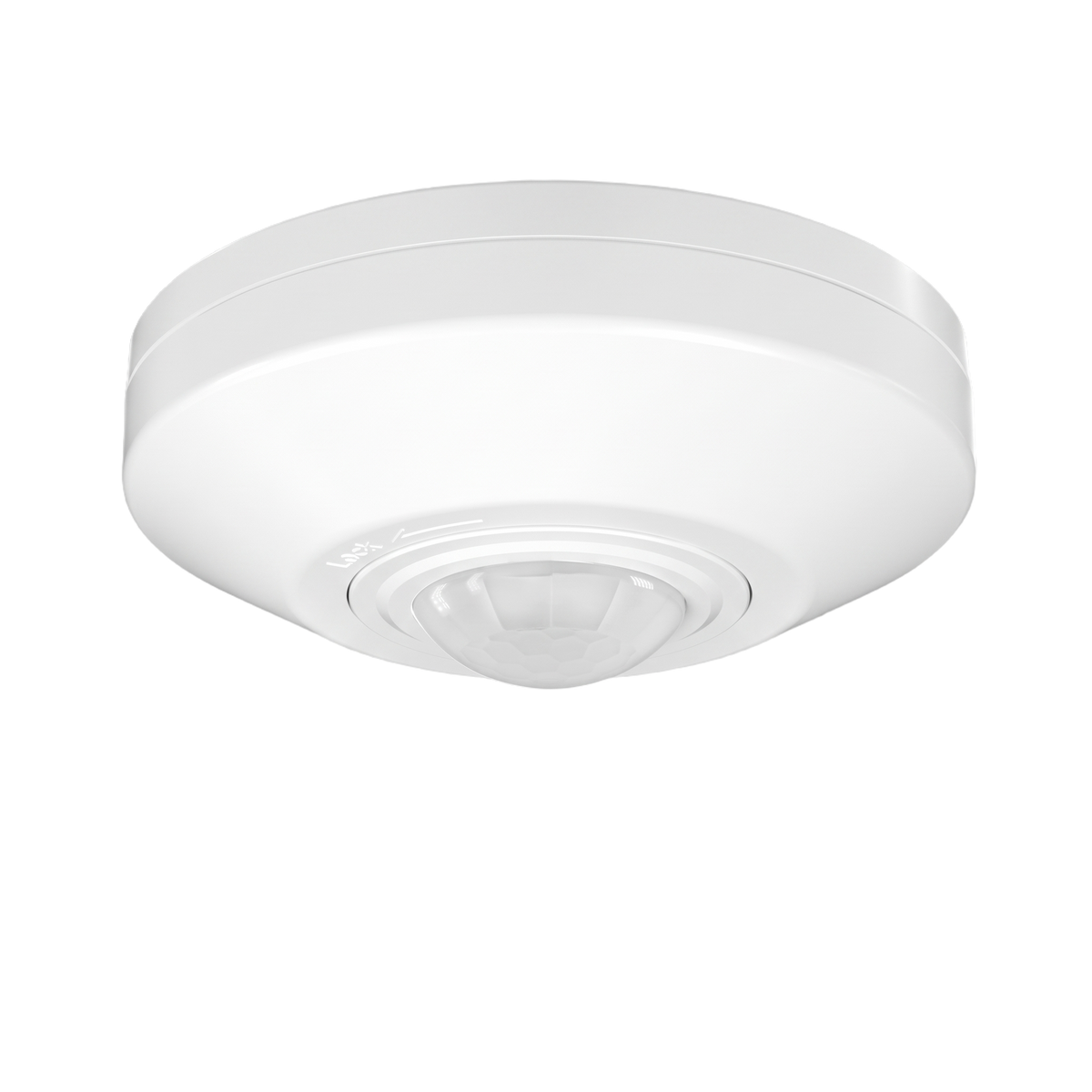

The Rayzeek RZ037 series is a ceiling-mounted 360° PIR motion sensor line designed for automated lighting control. With high-voltage AC models (5A and 10A) and a low-voltage DC model (12V/24V), RZ037 fits residential, commercial, and utility spaces alike. The onboard microcontroller ensures stable detection and precise control.
Set your preferred time delay, motion sensitivity, and ambient light (LUX) threshold using simple push-buttons. Ideal for hallways, closets, storage rooms, toilets, stairwells, garages, work areas, and more—where hands-free lighting boosts convenience and reduces energy consumption.
