Smart AC Control. Save Energy, Stay Cool.
Meet the RZ050-DS, your intelligent AC partner. It automatically manages your air conditioning based on room presence and even turns it off if doors or windows are left open, slashing energy bills without sacrificing comfort.
FEATURES
- Saves energy (up to 20%-50%) by automatically controlling your AC based on room occupancy.
- Learns from your existing AC remote: ON/OFF signals or specific temperature settings.
- Includes door sensor(s) to automatically turn off AC if doors or windows are left open, preventing wasted energy.
- Smart Night Mode ensures your AC stays on for comfortable sleep, preventing accidental shutoff.
- Compatible with most air conditioners operated by remote controls.
- Wireless design for quick, flexible DIY wall installation (stick-on or screw mount).
SPECIFICATION
- Model: RZ050-DS
- Power: 5V DC (Micro USB, cable included, power adapter not included)

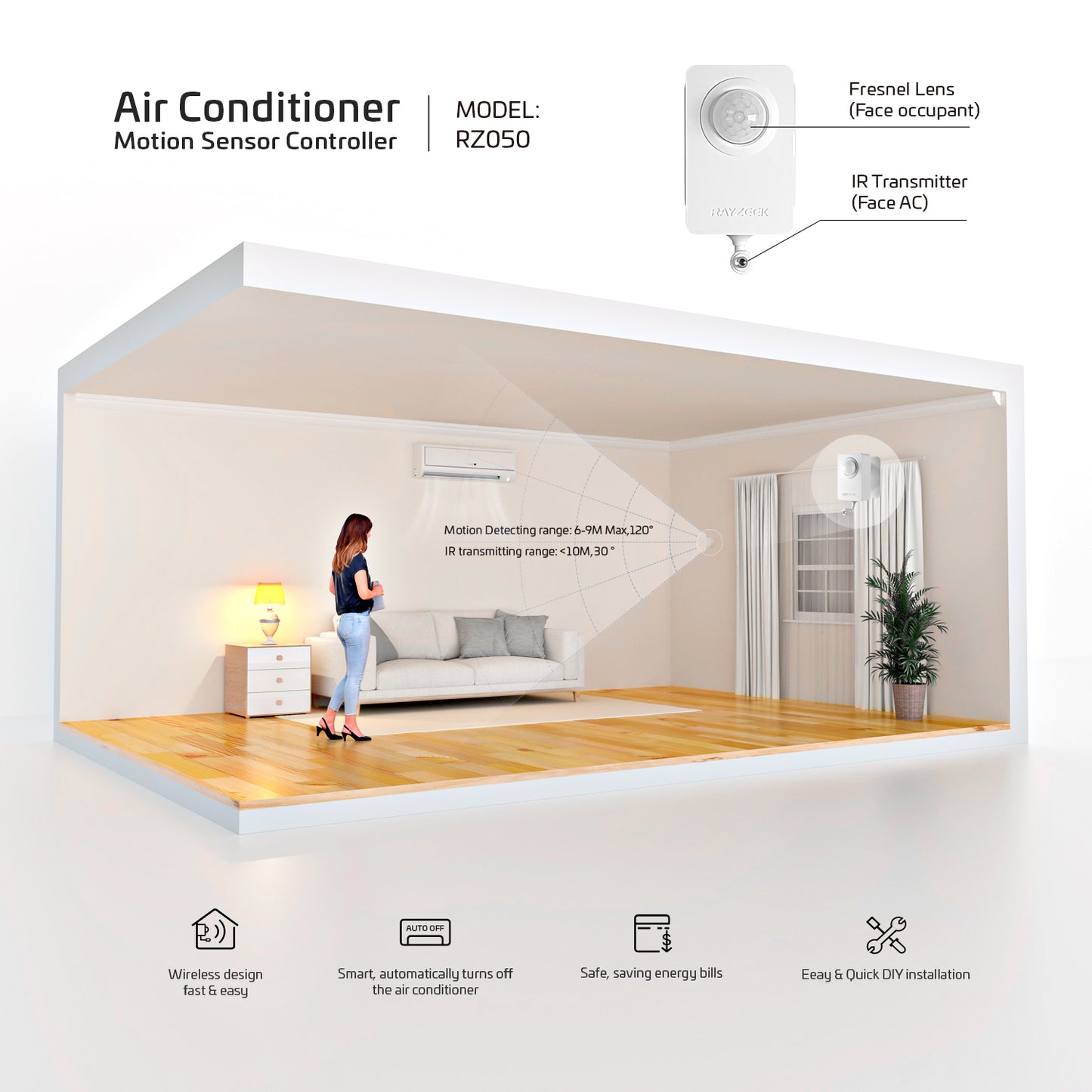

- Motion Detection Range: Up to 6-9 meters
- IR Control Range: Up to 10 meters (30-degree transmission angle)
- Time Delay Options: 15min, 30min, 1h (default), 2h
- Operating Conditions: Indoor use only, 0-40°C, up to 90% relative humidity

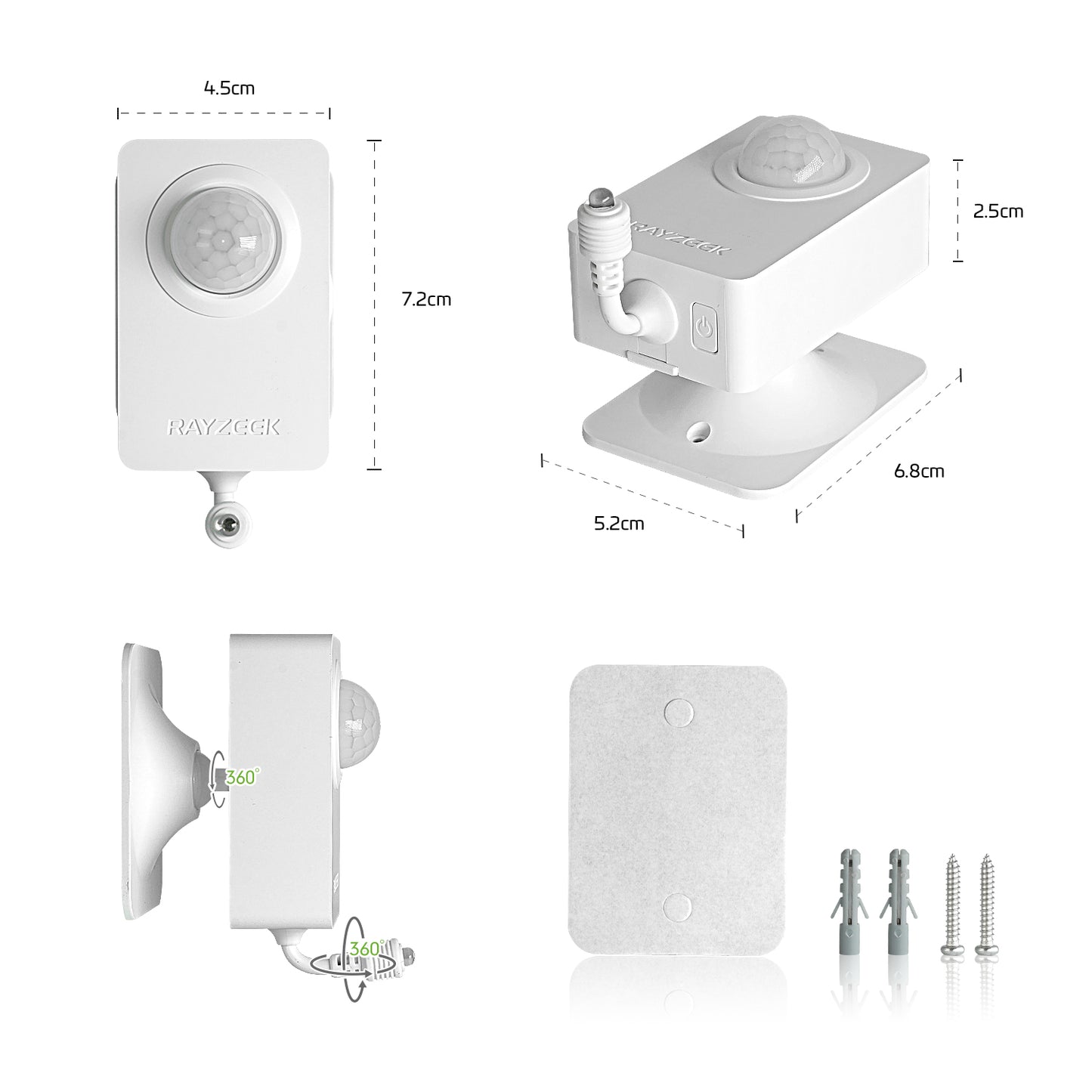

- Dimensions: 45 x 70 x 64 mm

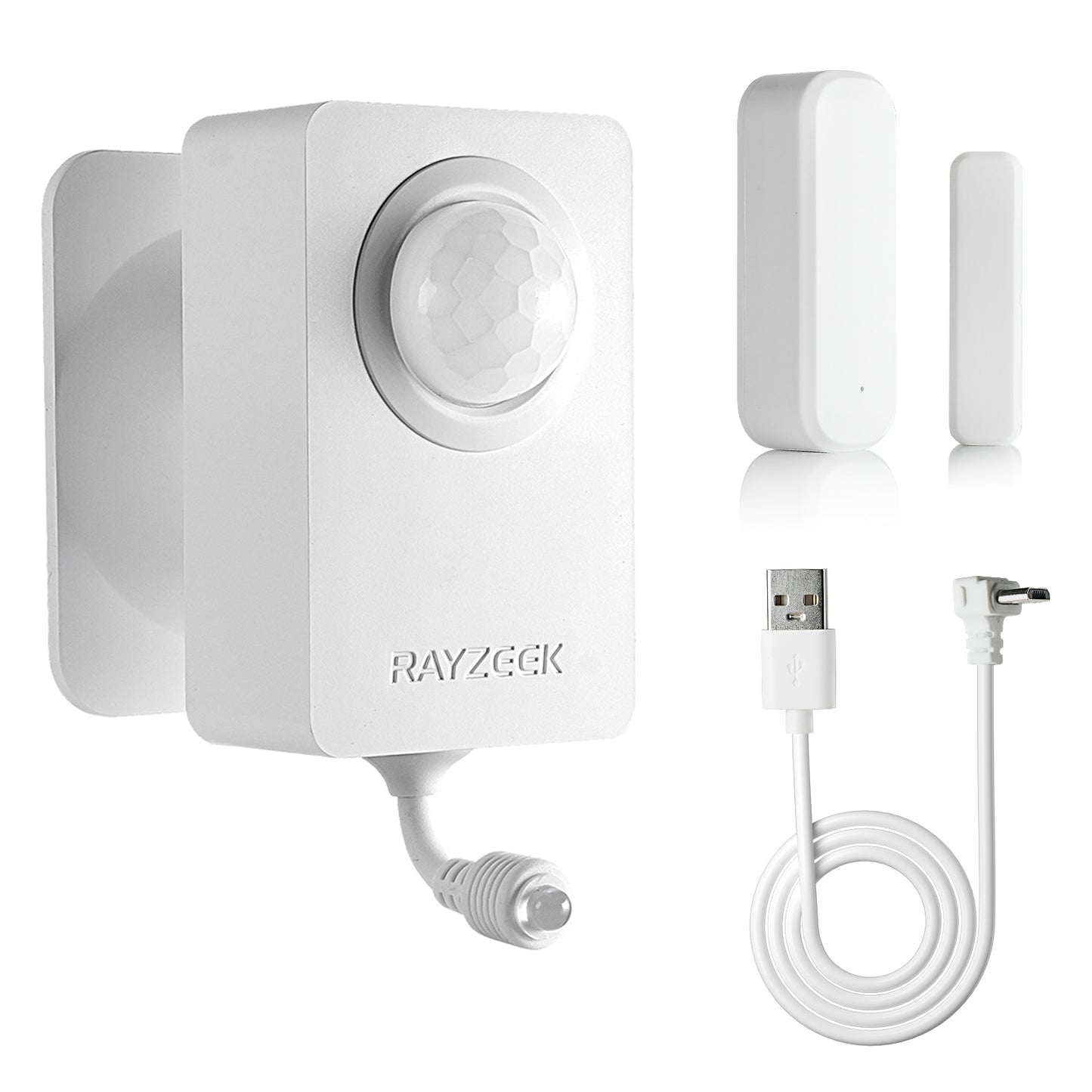

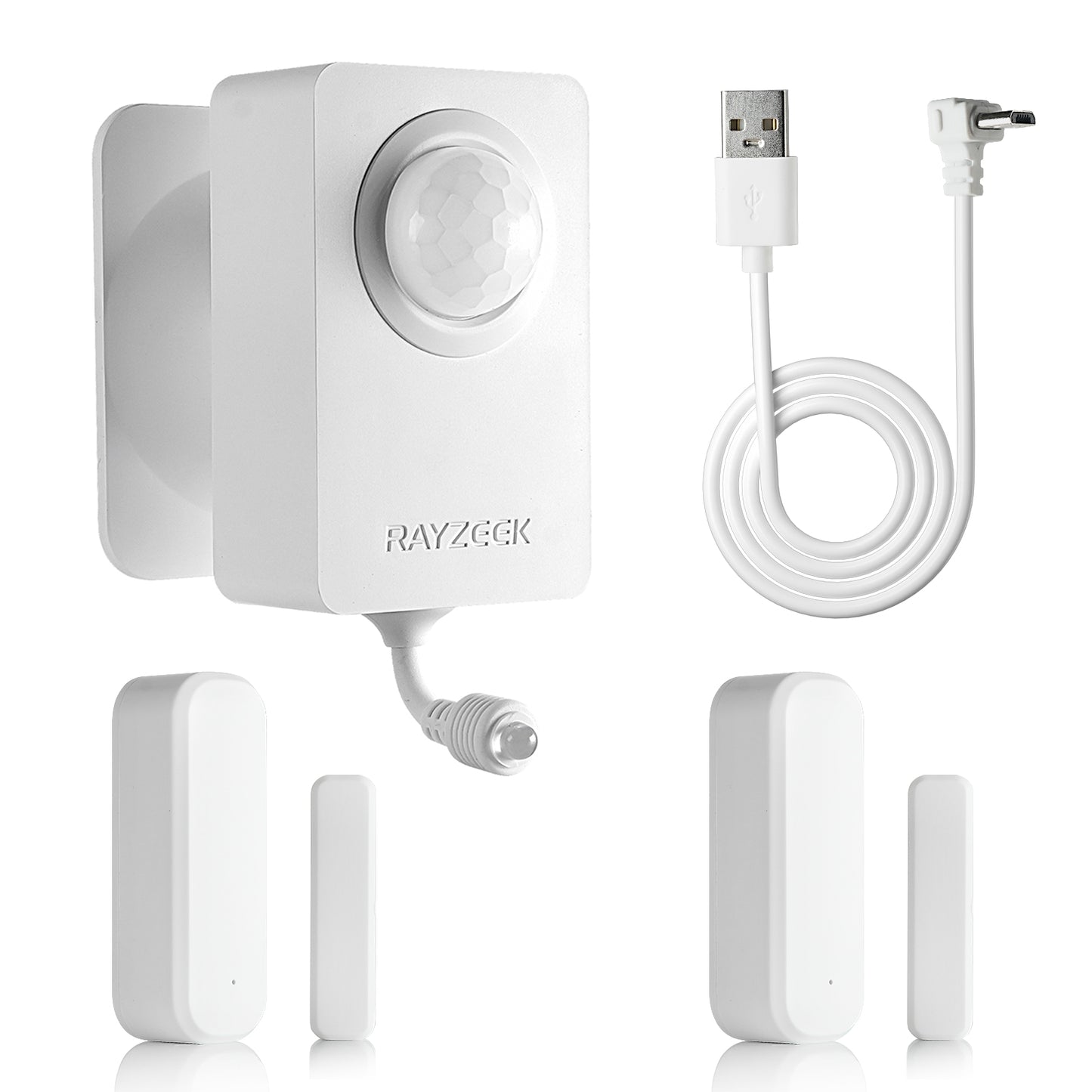

- Bonus: Includes RZ001 door sensor(s) for enhanced energy saving.
PRODUCT OVERVIEW
The Rayzeek RZ050-DS Air Conditioner Motion Sensor Controller is a smart kit designed to bring automation and energy savings to your home cooling. It uses passive infrared (PIR) technology to detect if someone is in the room, automatically turning your AC on, off, or adjusting it to a pre-set temperature based on your AC remote's learned commands.
Simply power it via the included USB cable (requires a 5V DC power source), teach it commands from your AC's remote control (like 'OFF' when you leave, or a specific temperature when you enter), and place it in the room. The RZ050-DS takes care of the rest, ensuring your AC isn't wasting energy cooling an empty space. For even smarter savings, the included RZ001 door sensor(s) will signal the controller to turn off the AC if a door or window is left open. With its easy wireless installation, Night Mode for undisturbed sleep, and compatibility with most remote-controlled ACs, it's the perfect way to enjoy a comfortable environment while reducing your energy bills.
Quick AC Compatibility Test
RZ050
|
RZ050-DP
|
RZ050-DS
|
|
|---|---|---|---|
| Auto AC Control Modes | Turn AC OFF |
|
Turn AC OFF |
| Window/Door Sensor Compatible | No | No |
|
| Power Supply | Battery Only |
|
USB Only * |
Note : USB Power adaptor not included in the package, purchase here.
