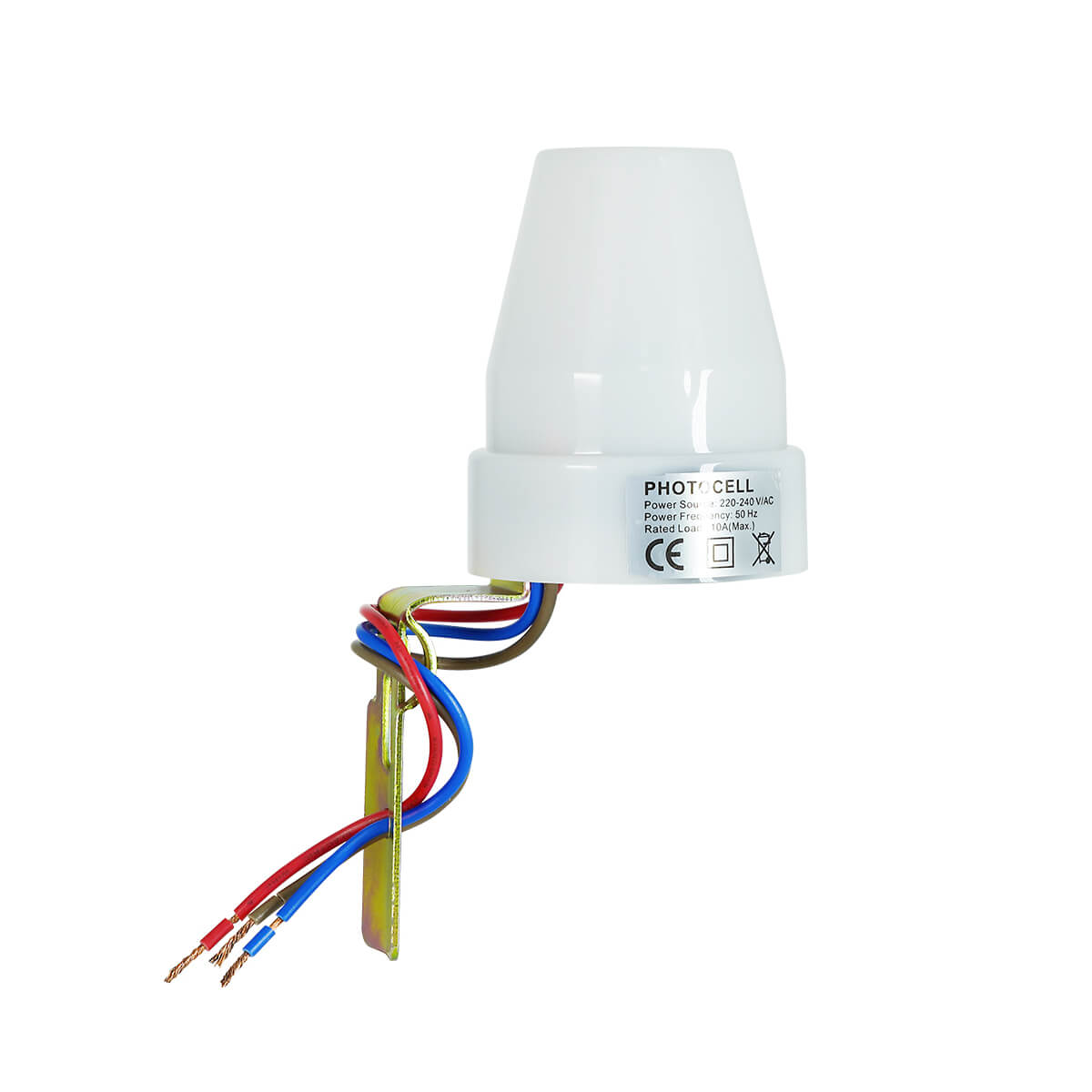

Rayzeek Light Sensor BS302
Rayzeek Light Sensor BS302
Weather-resistant outdoor photocell light control switch engineered for exterior fixtures, street lamps, and garden illumination. Automatically turns connected lighting on at dusk and off at dawn based on ambient light thresholds.
- ✓Dusk-to-Dawn Ambient Light Sensing
- ✓Adjustable Threshold (<5–50 LUX)
- ✓10A Relay Switching Capacity
- ✓220V–240VAC 50Hz Hardwire Input
Voltage Requirement: Rated strictly for 220V–240V AC 50Hz electrical supplies. Not compatible with North American 120V AC circuits without a voltage converter.
Automate Your Lighting, Effortlessly.
The BS302 Light Control Sensor automatically turns your lights on at dusk and off at dawn, providing convenience and energy savings for your road lights, garden lights, and more.
FEATURES
- Automatically turns lights on or off based on ambient light levels.
- Unaffected by ambient temperature and humidity.
- Practical for controlling loads to operate only at night.
- Adjustable ambient light sensitivity (<<5-50LUX).
- Easy installation with included metal bracket and screws.
- Connection-wire figure provided for clear wiring.
- Includes an opaque bag for daytime testing.
SPECIFICATION
- Model: BS302
- Product Type: Light Control Sensor (Photocell)
- Power Source: 220V - 240V/AC
- Power Frequency: 50Hz
- Rated Current: 10A
- Working Temperature: -20~+40℃
- Ambient Light Sensitivity: <<5-50LUX (adjustable)
- Working Humidity: <93%RH
PRODUCT OVERVIEW
The BS302 Light Control Sensor, also known as a photocell, is designed to automatically manage your lighting. It senses the ambient light levels and will turn connected lights on when it gets dark and turn them off when it becomes light, making it ideal for outdoor applications like road lights or garden lights.
Installation involves switching off the power, connecting wires as per the provided diagram, and mounting the sensor in the correct orientation using the metal bracket and screws. For testing during the day, an enclosed black opaque bag can be used to cover the sensor, simulating darkness to turn the lamp on. Ensure there are no obstructions or swaying objects in front of the photocell that could affect its ability to detect natural light.
