- Input: 100-240VAC 50/60HZ
- Power: 14.4W / 30W
- Output: 12VDC 1.2A/ 12VDC 2.5A
- Connect the maximum length of the LED strip: 3M / 6.5M

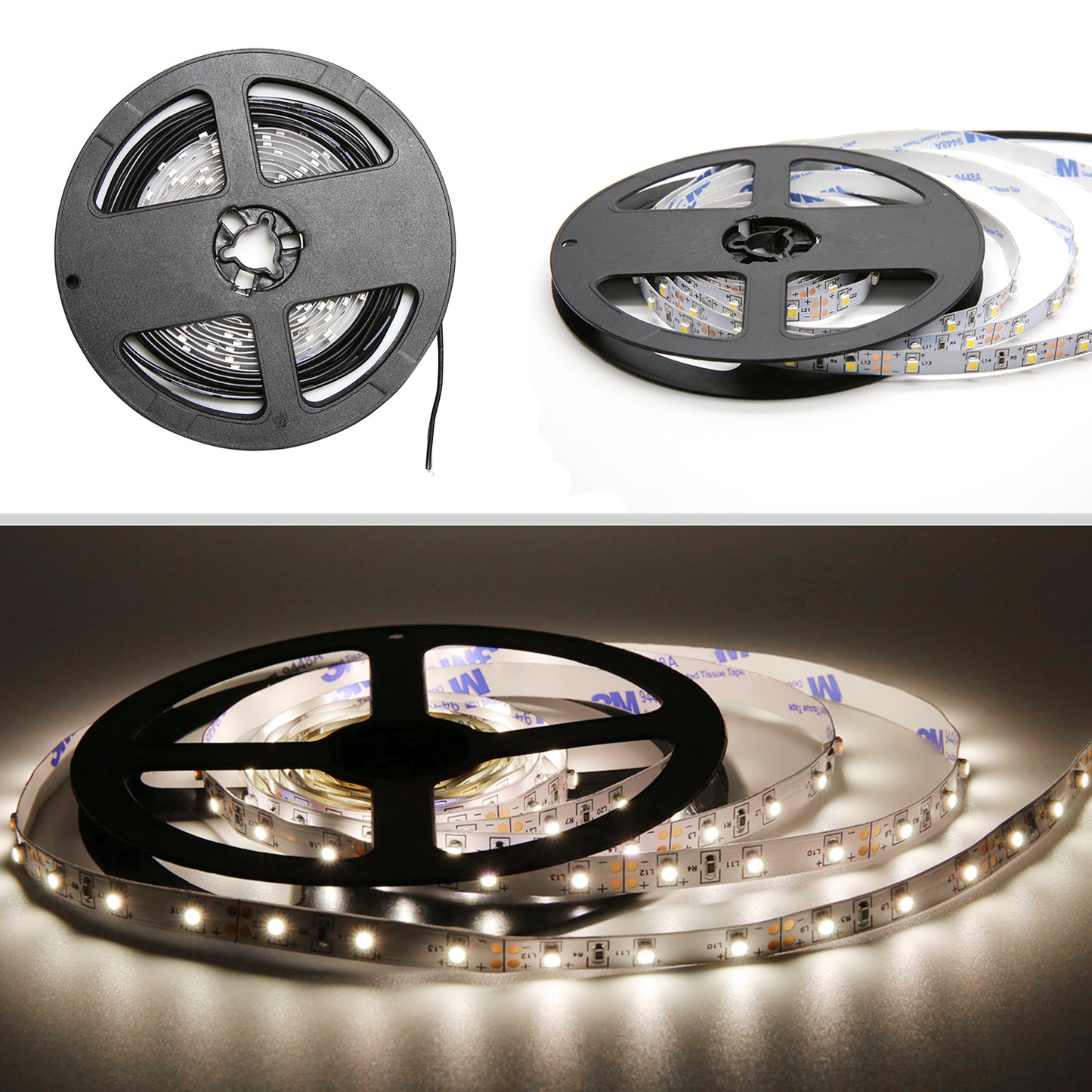

- Length of Strip Light: 6m/roll
- Rated Power: 4.8W/m
- Input Voltage: DC 12V
- LED Type: SMD 3528
- High brightness LED: 6-7lm/LED
- Waterproof grade: Non-Waterproof

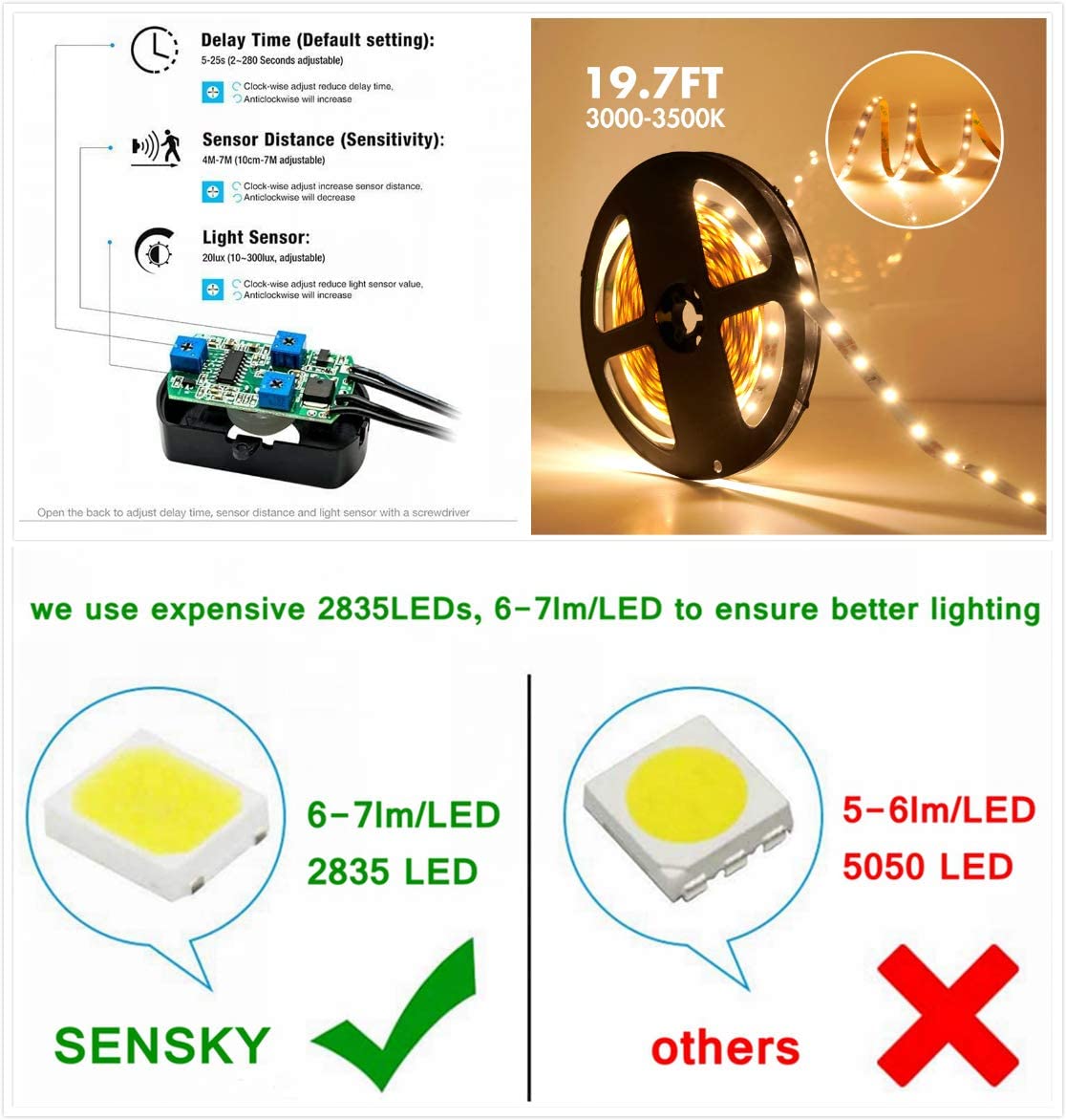

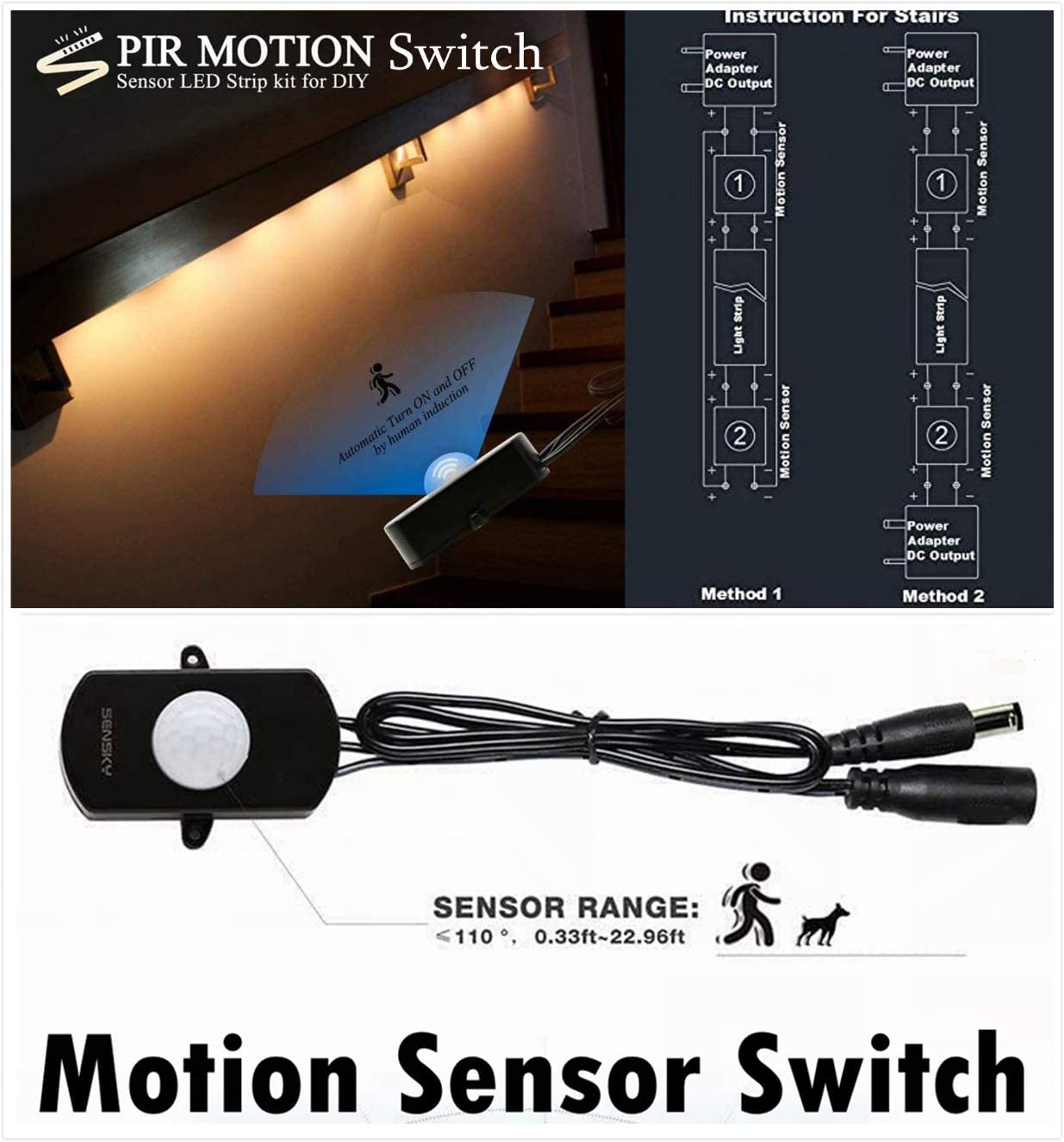

PIR Motion Sensor Switch BS010L :
- Operating voltage: DC12V-24V
- Load current: 3A
- Delay time: default setting 4-5min(2-280s adjustable)
- Sensitivity: 4M-7M (10cm-7M adjustable), 110 degrees cone angle
- Light sensor : 300lux (10-300lux adjustable)

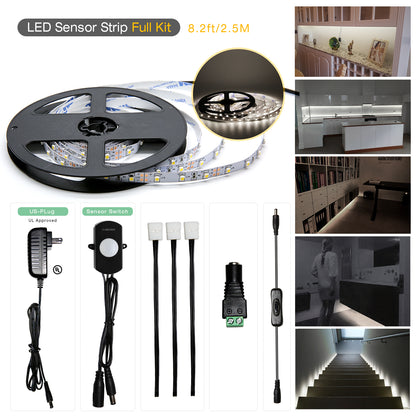

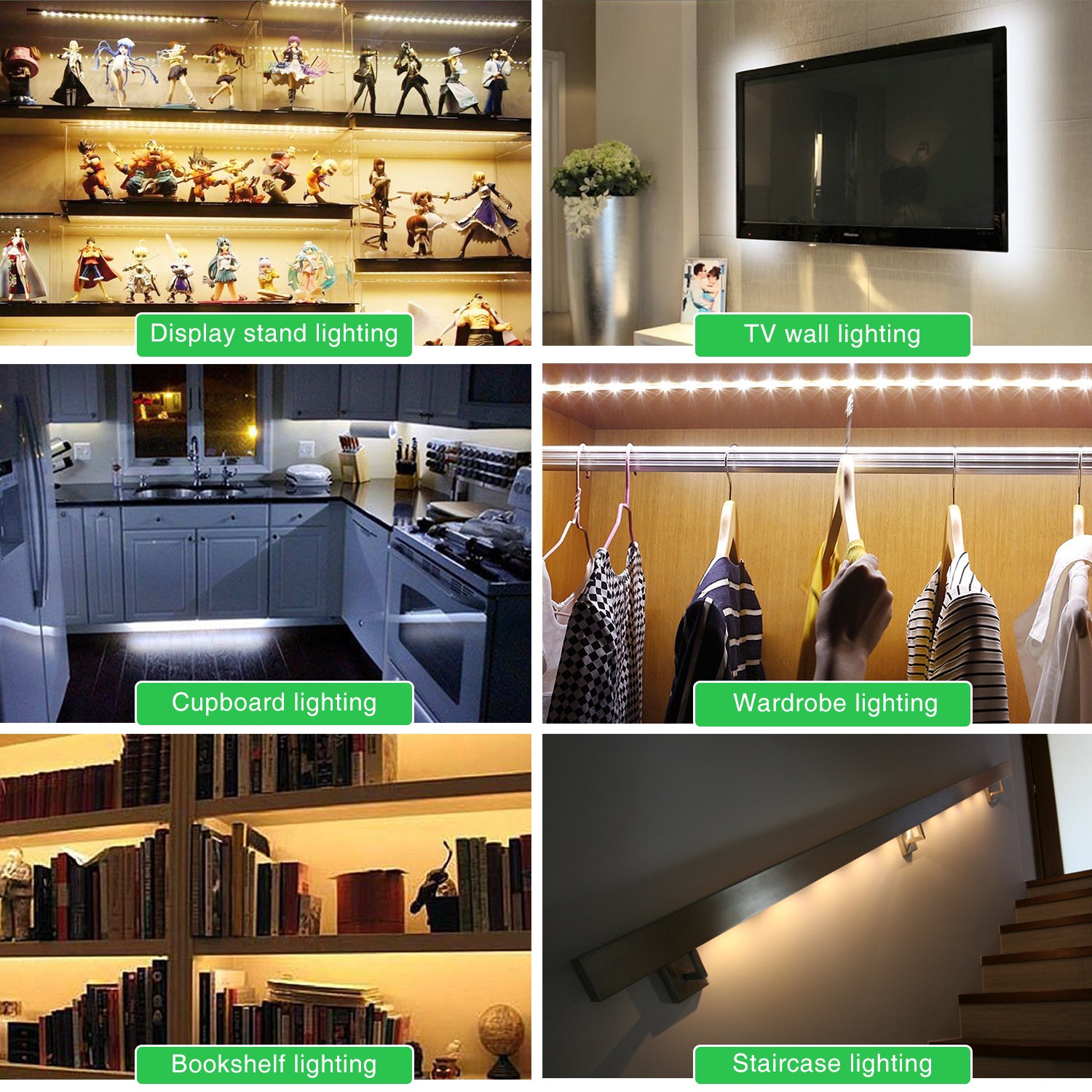

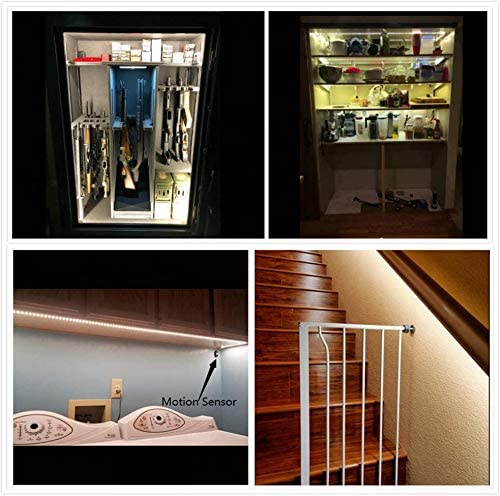

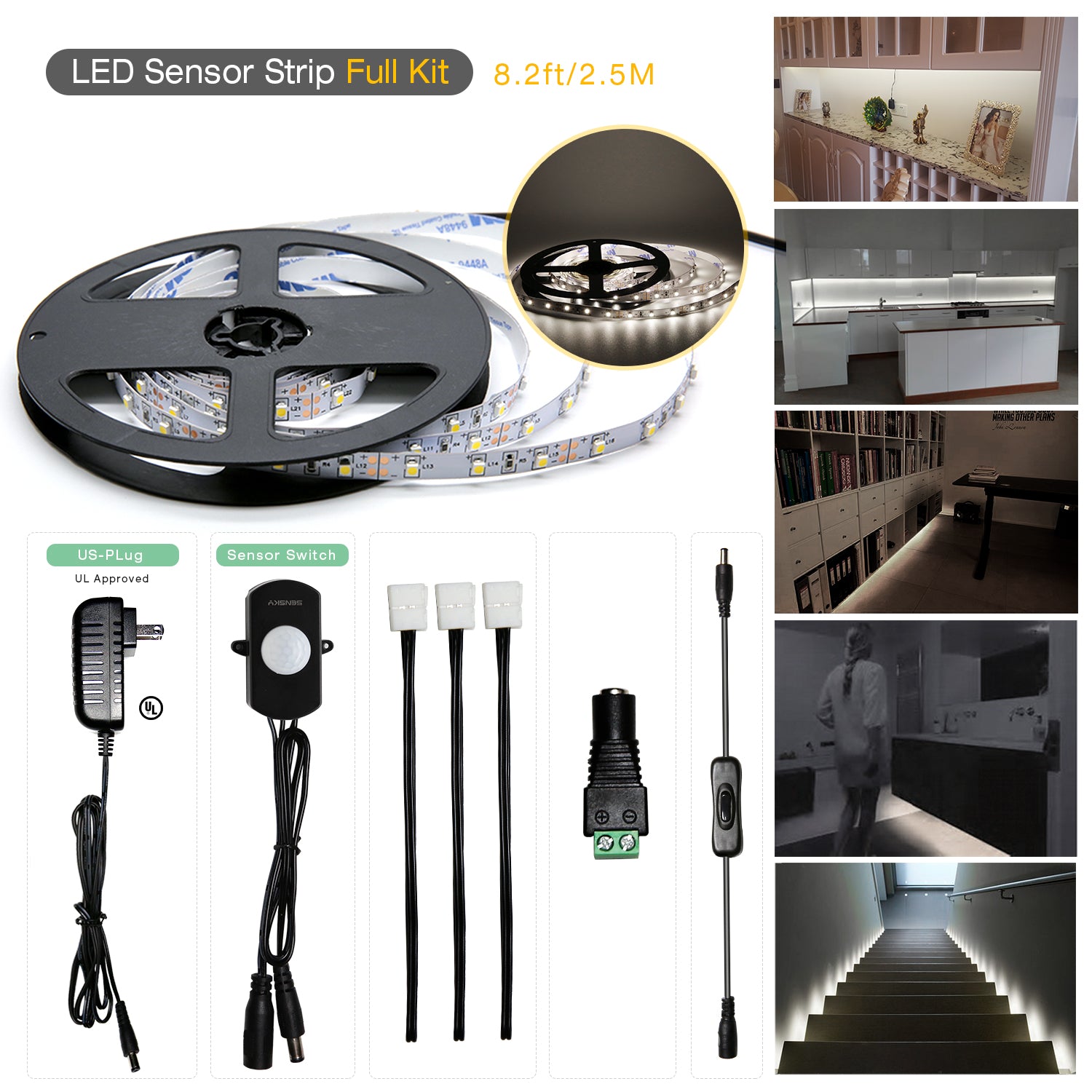

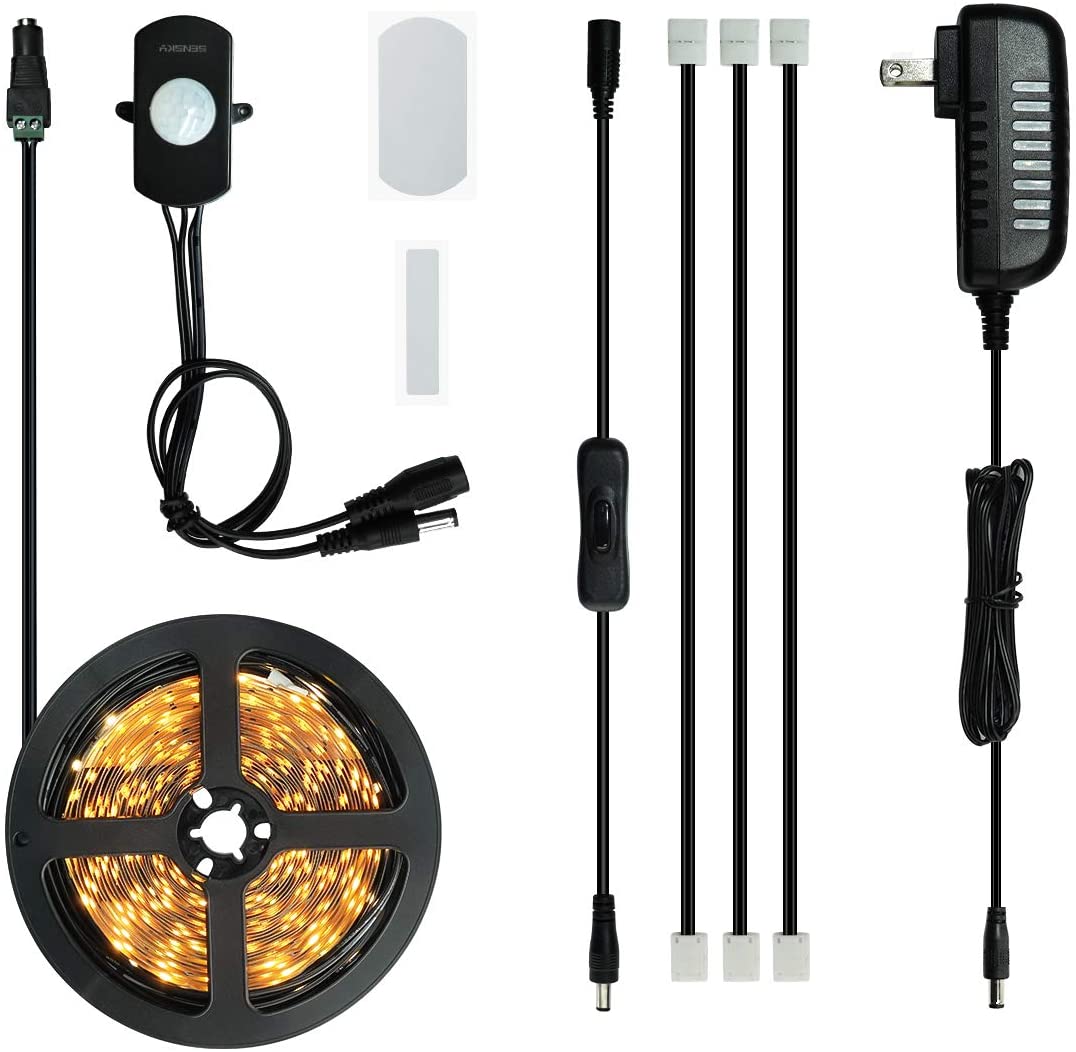

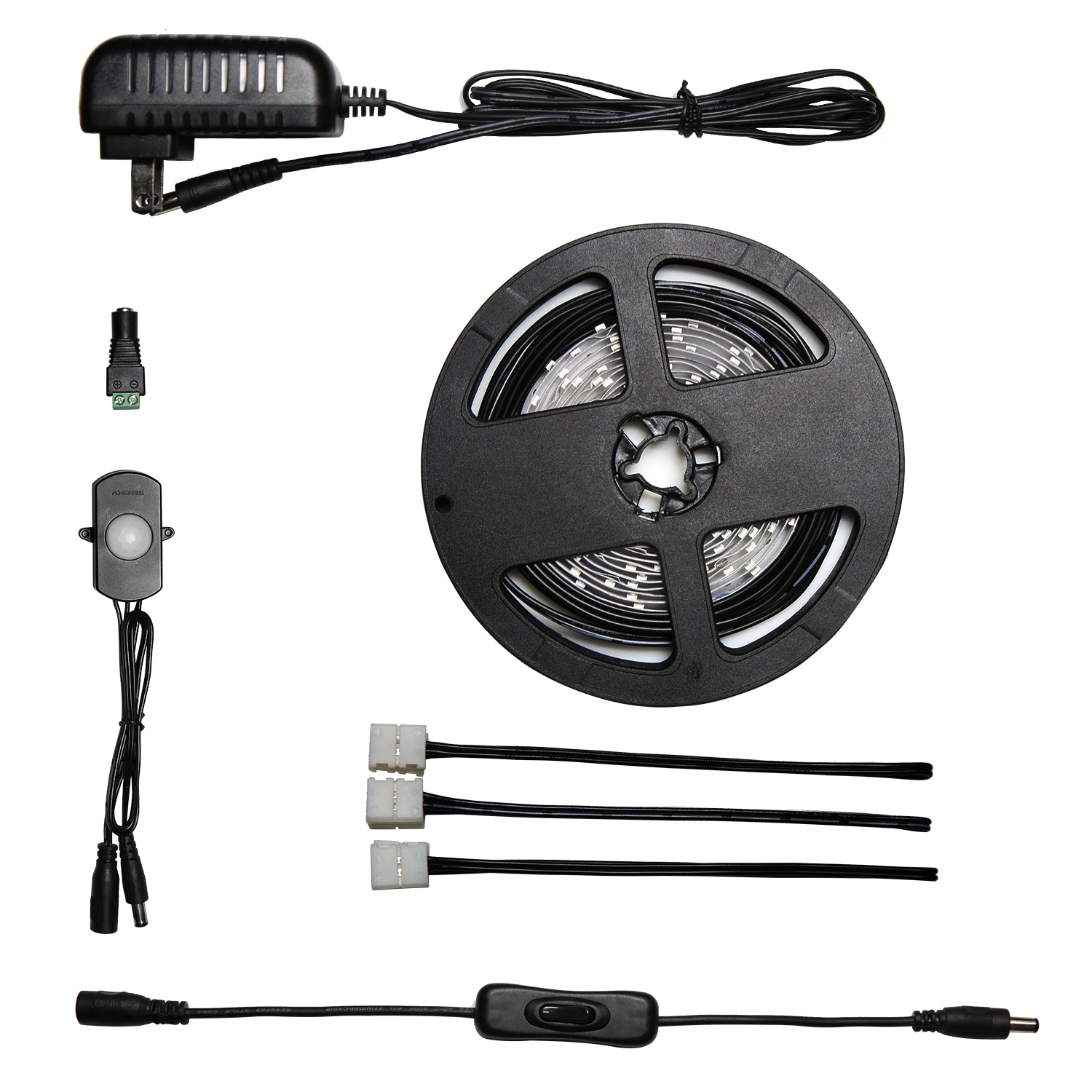

Sensky Motion Sensor LED Under Cabinet Lighting Kit Extendable Under Counter LED Light with Motion Sensor, Power Adapter for Closet, Shelf, Show Case, TV wall Lighting
1. Why do you need a set of LED strips activated by movement?
It offers a cost-effective alternative to traditional electric incandescent light bulbs.
2. How does it work?
A: Automatic light on / off of lights by human induction: the under cabinet lighting kit is supplied with a pir motion sensor switch. When people enter the detection range, the light turns on. During the delay time when movement is detected, the delay time is restored and a new delay time begins. If there is no more movement, the light goes out.
B: Turn the lighting on or off immediately by pressing the switch. The under cabinet lighting comes with an on/off switch.

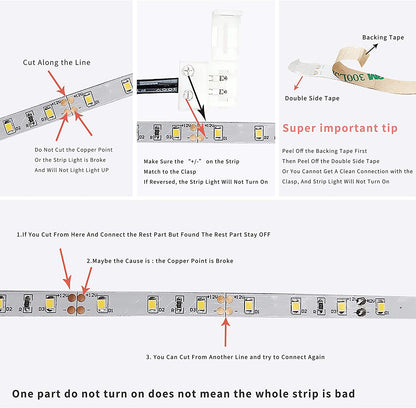

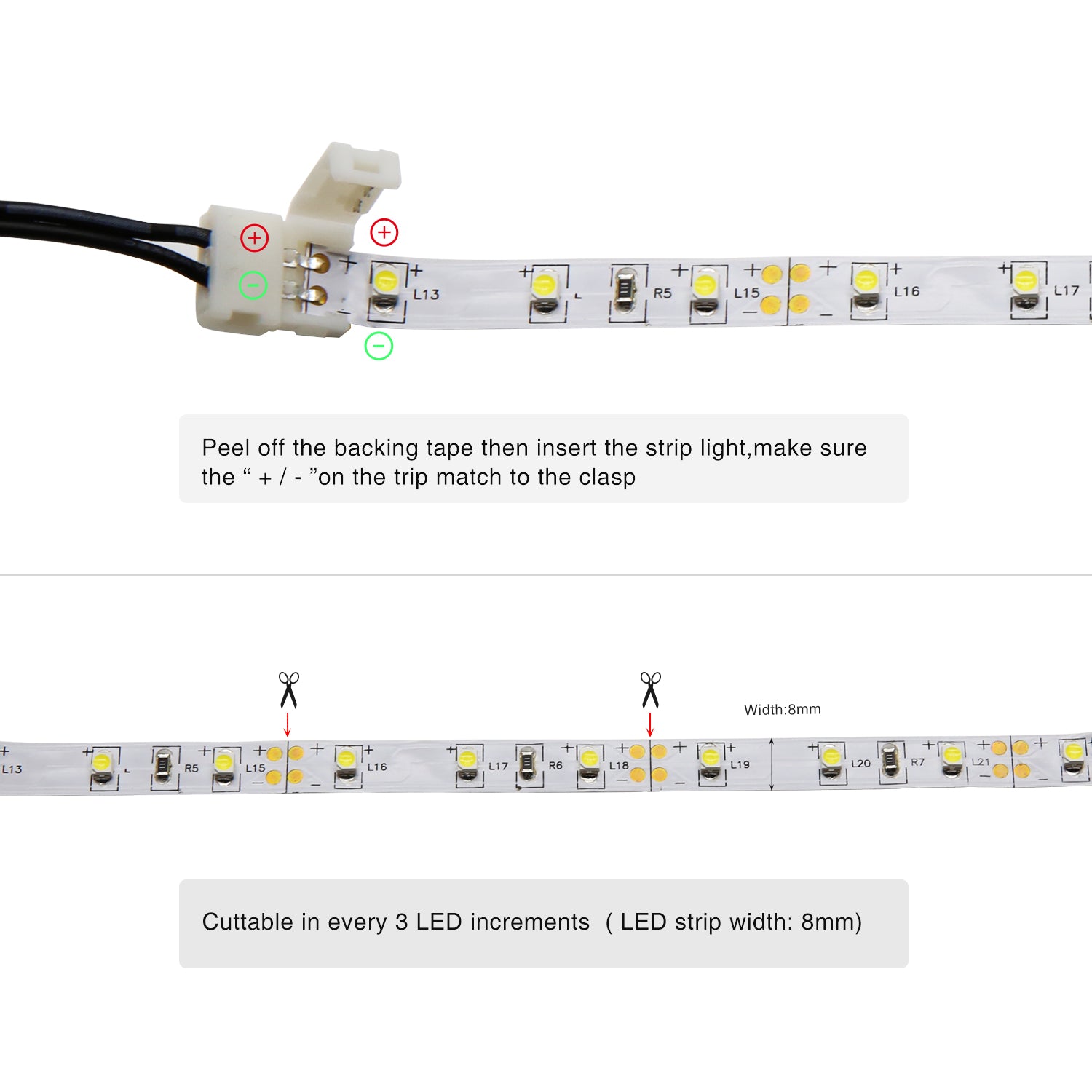

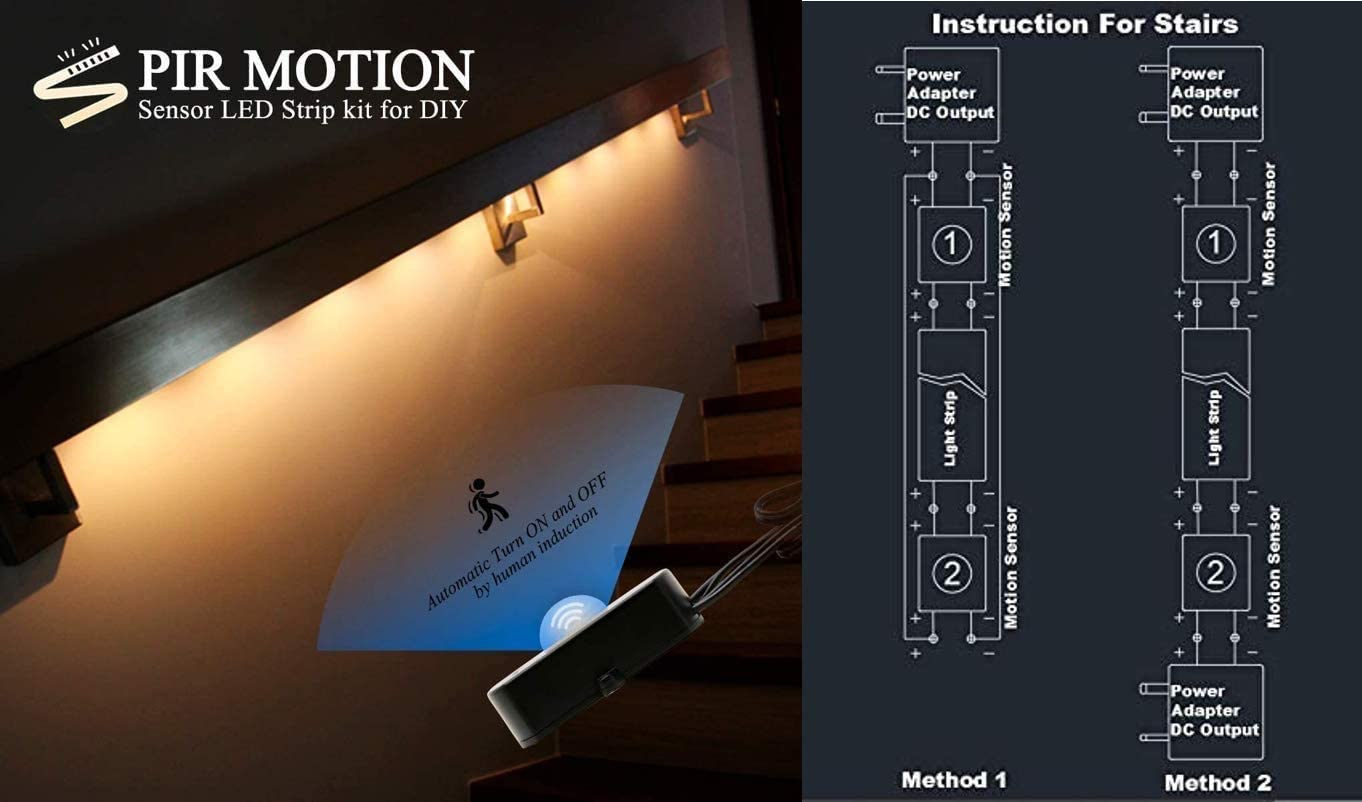

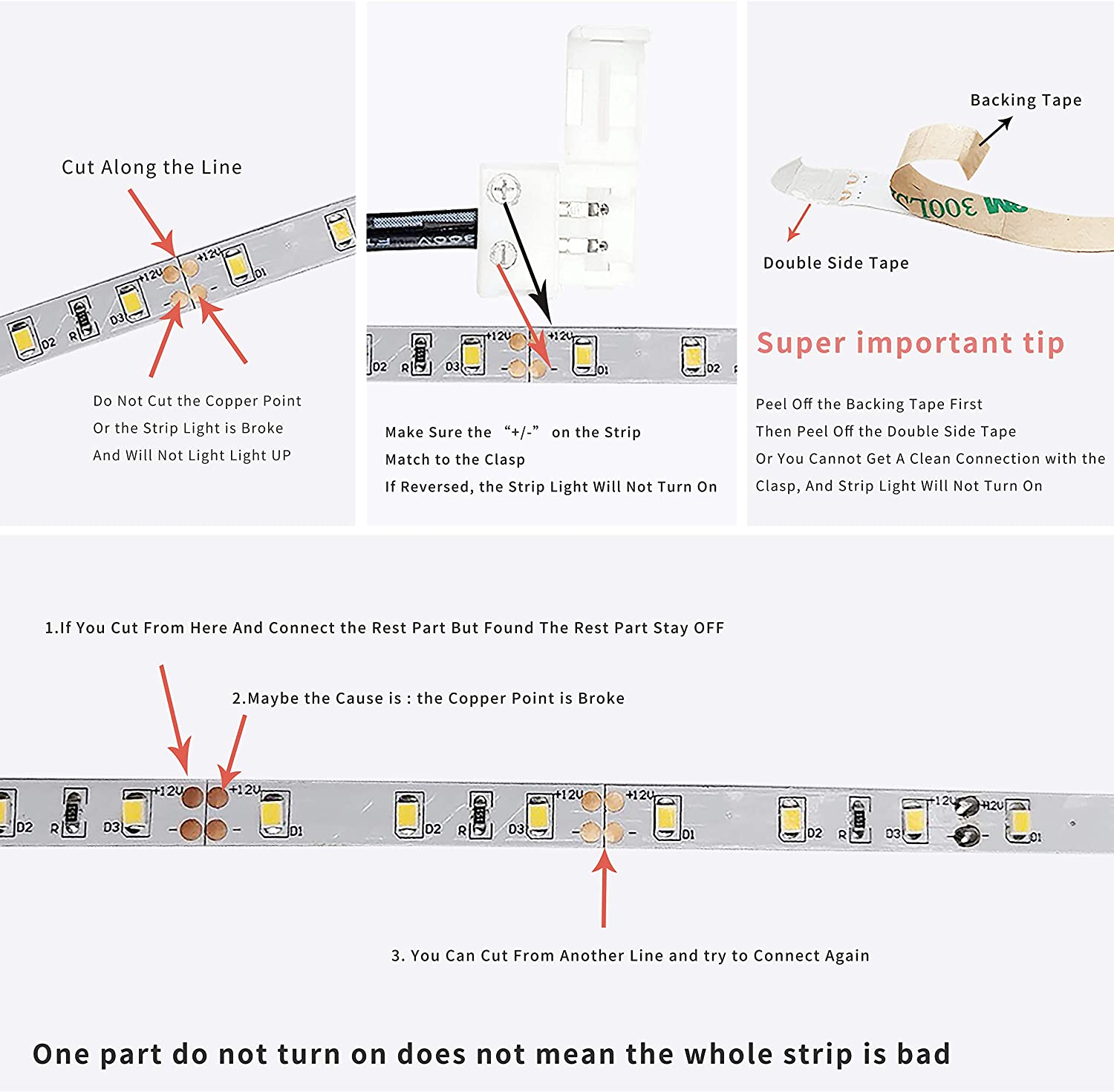

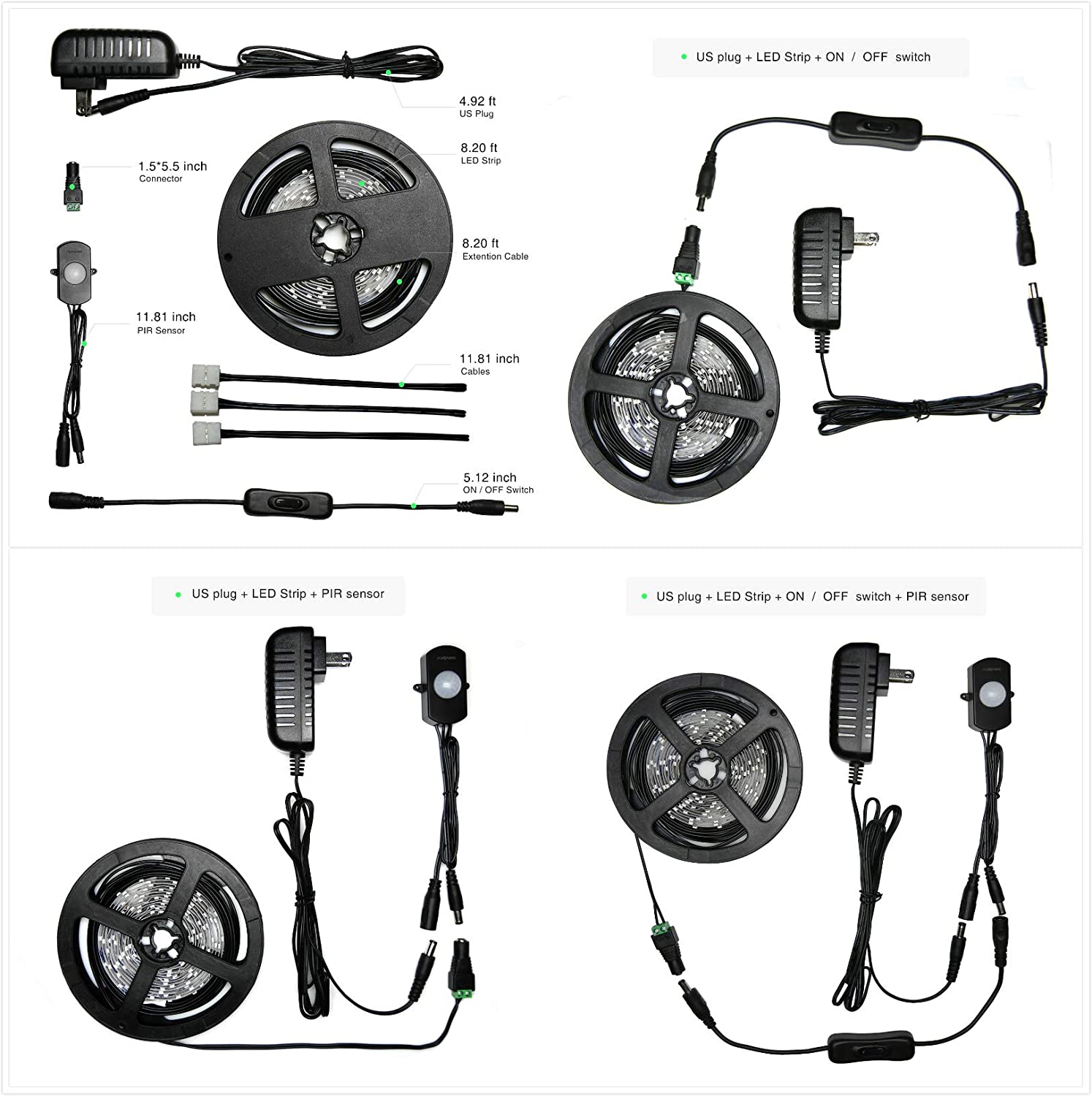

3. Tips for wiring?
- Power adapter + on / off switch + led strip
- Power adapter + PIR sensor switch + led strip
- Power adapter PIR sensor switch+ on+ on / off switch LED strip
- The PIR sensor switch only works in dark environment according to the default setting.
- Make sure that there is no dust, oil or water on the surface of the objects before installing the appliance to prevent it from falling.
