Automate Lights & Fans. Smart Motion, Simple Control.
Effortlessly manage your home's lighting and fans with our 3-in-1 motion sensor switch, designed for US households. Enjoy hands-free convenience, save energy, and customize settings for a smarter living space.
FEATURES
- Versatile 3-in-1 Control: Choose from Occupancy (auto-on/auto-off), Vacancy (manual-on/auto-off), or standard Manual ON/OFF modes to suit your needs.
- Hands-Free Automation: Automatically turns lights or fans on when motion is detected and off after a preset time of inactivity.
- Energy Saving Solution: Helps reduce electricity consumption by ensuring lights and fans are only active when a room is occupied.

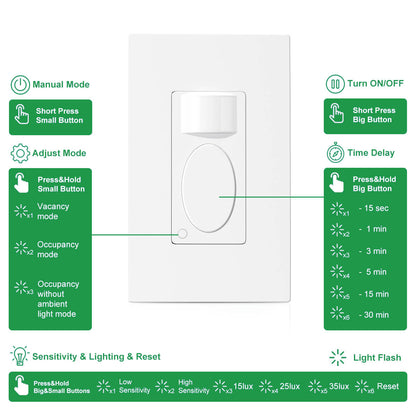

- Fully Customizable Settings: Easily adjust time delay (15 seconds to 30 minutes), ambient light sensitivity (3 levels or off), and motion detection sensitivity.
- Reliable PIR Technology: Employs advanced Passive Infrared (PIR) sensing for accurate and consistent motion detection.
- Wide Detection Area: Features a 150° detection angle and a range of up to 9 meters (approx. 30 feet).
- US Standard Installation: Designed to replace standard wall switches in US homes. Note wiring requirements based on model.
SPECIFICATION
- Power Source: 120VAC, 50/60Hz (Standard US electrical systems)
- Operating Modes: Occupancy, Vacancy, Manual ON/OFF
- Adjustable Time Delay: 15s, 1min (default), 3min, 5min, 15min, 30min
- Adjustable Light Sensor: 15Lux, 25Lux (default), 35Lux, or Light Sensor OFF
- Motion Detection: Passive Infrared (PIR) sensor, 150° angle, up to 6-9m (approx. 20-30ft)
-
Wiring Requirements:
- 'N' Models (e.g., RZ021-10A-N): Require Live, Load, Neutral, and Ground wires.
- 'G' Models (e.g., RZ021-10A-G): Require Live, Load, and Ground wires (No Neutral needed).
-
Max Load Capacity (varies by RZ021 model):
- Resistive/Tungsten: Up to 10A / 960W
- Electronic Ballast/LED: Up to 5A
- Motor: Up to 1/3 HP
- (Always verify specific load ratings for your chosen model)
- Operating Environment: Indoor use only, 0°C to 40°C (32°F to 104°F)
- Recommended Installation Height: 1.2m to 1.6m (approx. 4ft to 5.25ft)
PRODUCT OVERVIEW

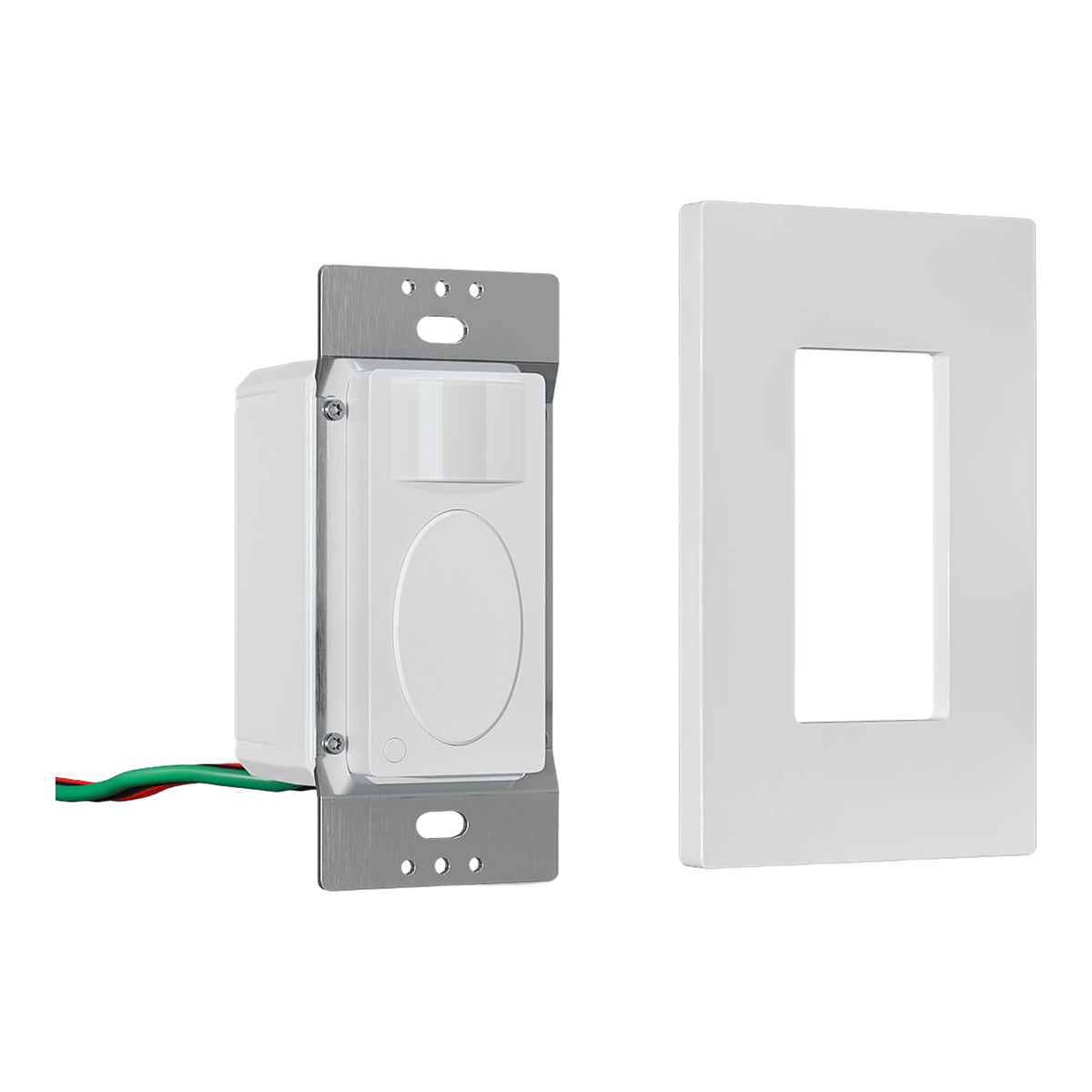

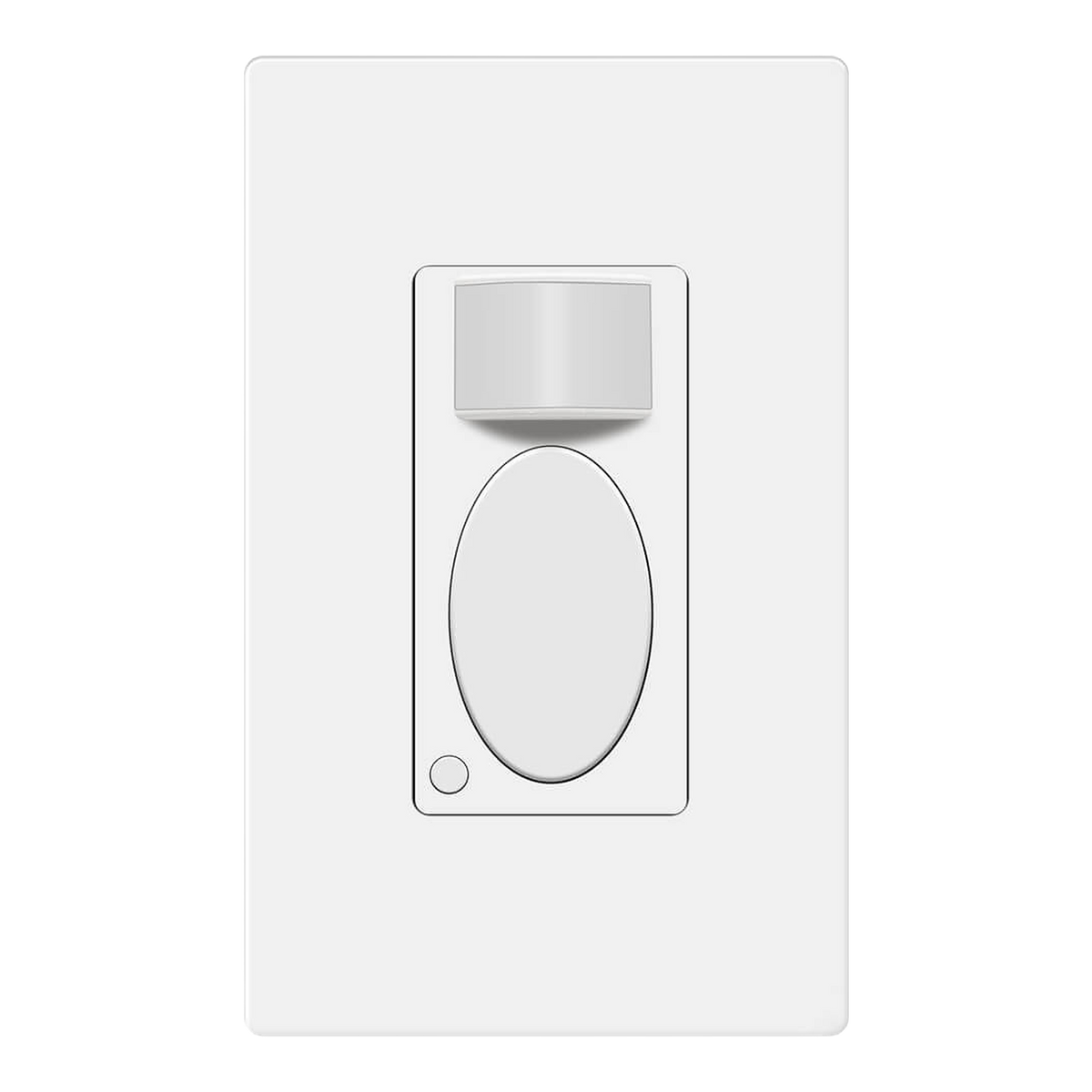

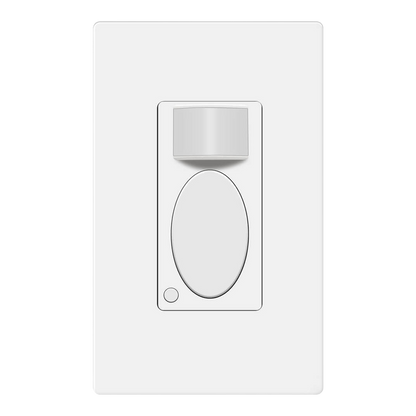

The Rayzek RZ021 Series Motion Sensor Switch is your smart solution for automating lights and fans in any US home or office. It replaces a standard wall switch, using advanced Passive Infrared (PIR) technology to detect motion and turn connected devices on when you enter a room and off after you leave.
Offering unparalleled flexibility, you can choose from three convenient operating modes: Occupancy (auto-on/auto-off), Vacancy (manual-on/auto-off), or a straightforward Manual ON/OFF. Installation is designed for standard US outlet boxes. Fine-tune your experience with easily adjustable settings for time delay, light sensitivity, and motion detection. Perfect for enhancing convenience and energy efficiency in hallways, bathrooms, closets, garages, laundry rooms, and more.
