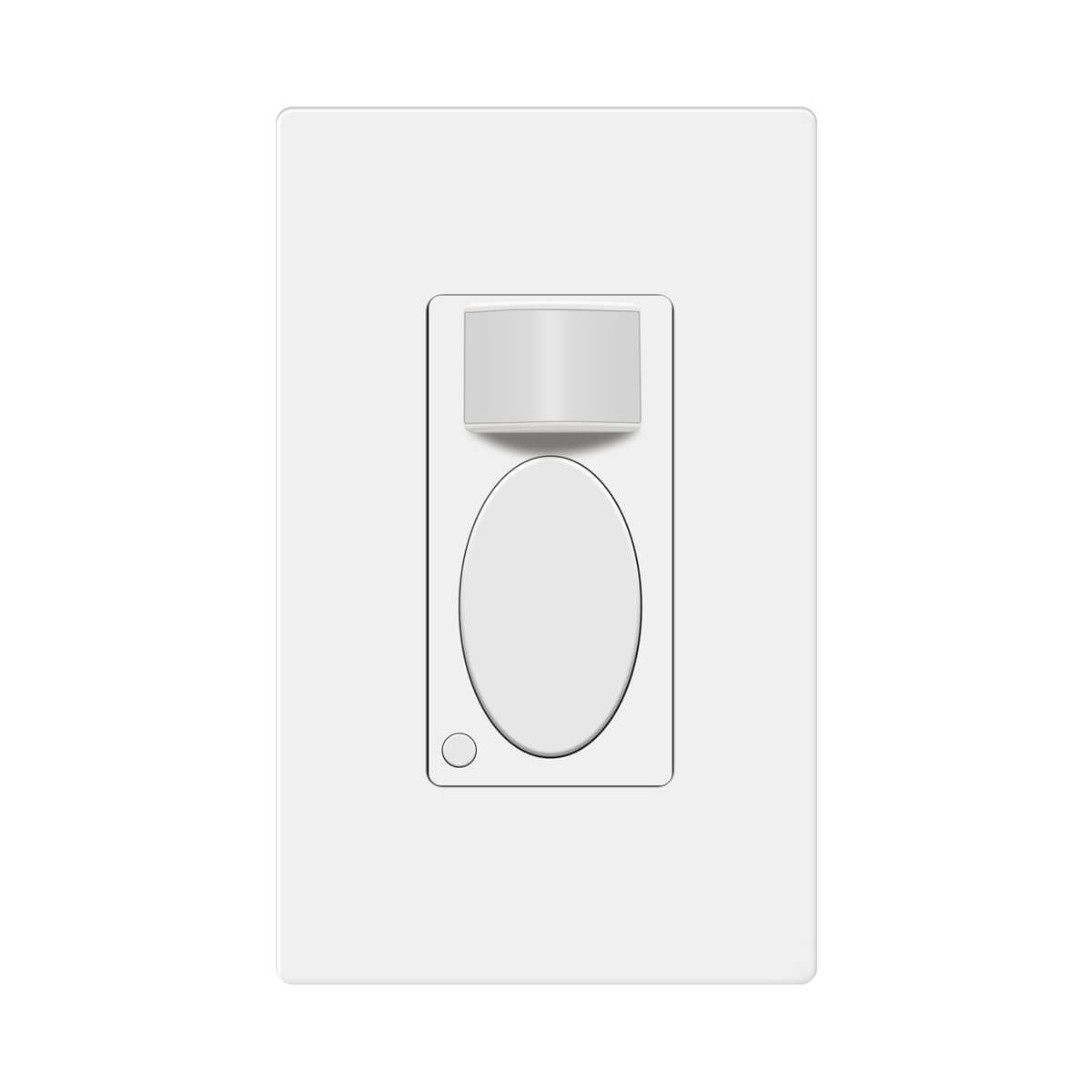

rz021 us occupancy vacancy sensor switch front

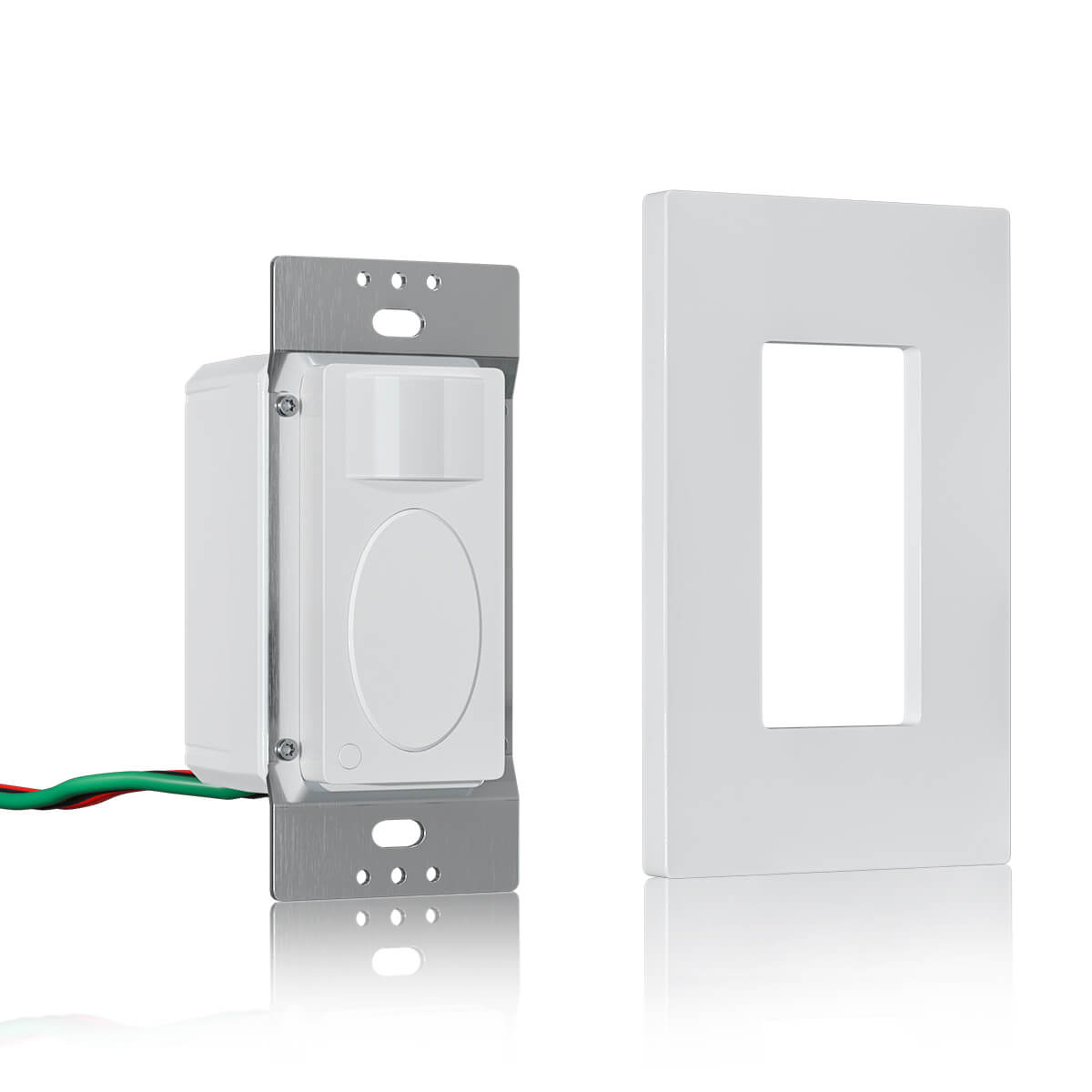

rz021 us occupancy vacancy sensor switch with cover
  • Load image into Gallery viewer, rz021 us occupancy vacancy sensor switch front
  • Load image into Gallery viewer, rz021 us occupancy vacancy sensor switch with cover

Wall Mount Motion Sensor, US Standard

Occupancy, Vacancy, ON/OFF Mode

RZ021-10A-G
Regular price
$17.00
Sale price
$17.00
Regular price
Sold out
Unit price
per

  • US standard
  • 110~277V residential and commercial voltage applicable
  • 5A, 10A option available
  • Neutral wire required or ground wire required
  • UL, FCC, RoHS, CE
  • Easy retrofit and replace normal light switch

RZ021 Motion Sensor

Features & Specifications

  • Sensor Mode: Vacancy mode, Occupancy mode, Occupancy without light sensor mode, Manual ON/OFF mode
  • Time-Delay: 15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min
  • Light Sensor: Off, 15 Lux, 25 Lux (default), 35 Lux
  • Sensor Sensitivity: Low sensitivity, High sensitivity
  • Power Source: 110 VAC ~ 277 VAC
  • Power Frequency: 50 / 60Hz
  • Installation Height: 1.2 m ~ 1.6 m
  • Detection Distance: 7 m ~ 9 m (<27℃)
  • Detection Range: < 150°
  • Detection Speed: 0.6 ~ 1.5m/s
  • Incandescent / Halogen: 550 W / 120 VAC(5A), 1000 W / 120 VAC(5A),
  • Fluorescent / Ballast / LED: 550 W / 120 VAC, 800 W / 277 VAC(5A), 1000 W / 120 VAC, 1200 W / 277 VAC(10A),
  • Working Humidity: < 93%RH
  • Working Temperature: -20 ~ +40℃

Ready to Use, Easy to Operate

Factory Setting

  • Occupancy Mode
  • Time Delay: 1min
  • Light Sensor Value: 25Lux

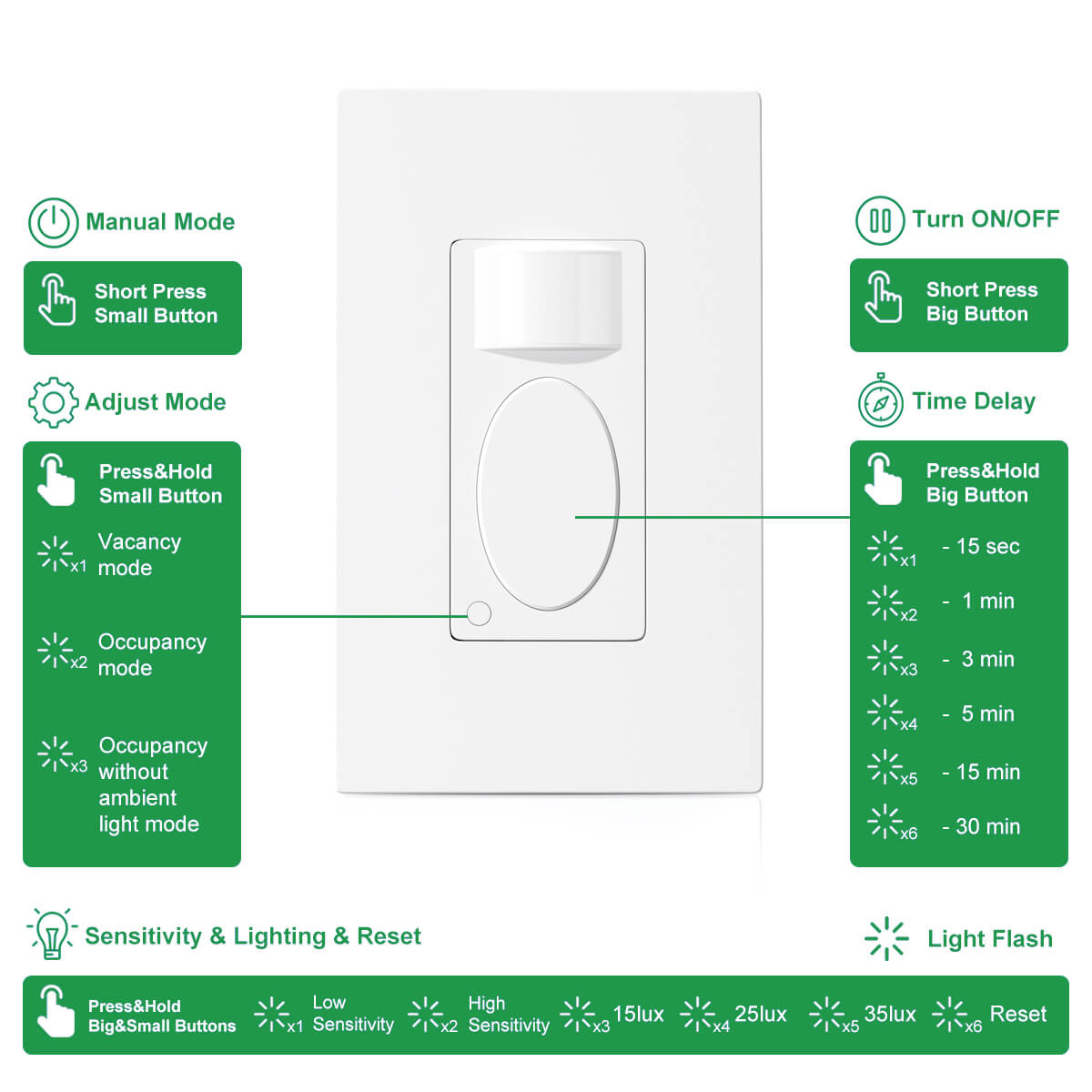

Customization

  • Working Mode: Vacancy Mode, Occupancy Mode, Occupancy without Light Sensor Mode, ON/OFF Mode
  • Time Delay: 15s, 1min, 3mins, 5mins, 15mins, 30mins
  • Sensitivity Adjustment: low sensitivity, high sensitivity
  • Light Sensor Value: OFF, 15Lux, 25Lux, 35Lux
  • Factory Settings Reset

Applications

Bathroom

Auto on/off occupancy sensor mode is the ideal energy-saving lighting mode for home bathrooms where we enter and leave quite often. With our hands often wet or dirty, the auto on/off lighting saves us a lot of time and helps keep your house clean.

Laundry Room

With a ceiling mount occupancy sensor, you don’t have to struggle to touch the light switch while arms-full. The RZ036 series ceiling mount occupancy sensor will turn on the light when you enter the laundry room and turn the light off when you leave.

Home Garage

When entering and leaving the garage, the occupancy sensor can automatically turn the light on and off to spare us time and effort especially when our arms are full.
