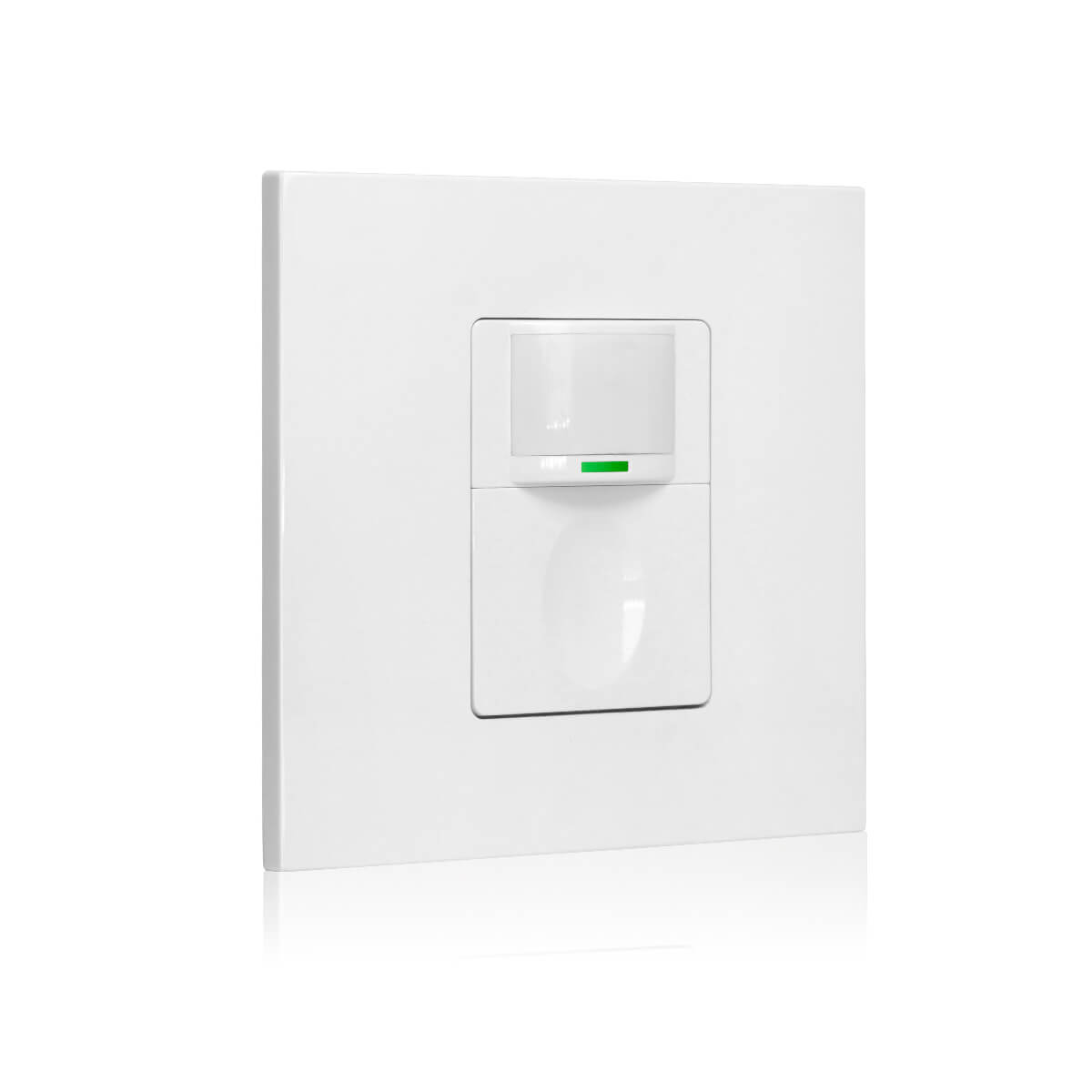

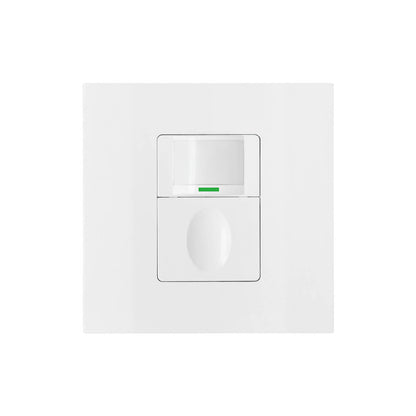

RZ023 Motion Sensor
Features & Specifications
- Sensor Mode: Vacancy mode, Occupancy mode, Occupancy without light sensor mode, Manual ON/OFF mode
- Time-Delay: 15 s, 1 min(default), 3 min, 5 min, 15 min, 30 min
- Light Sensor: Off, 15 Lux, 25 Lux (default), 35 Lux
- Sensor Sensitivity: Low sensitivity, High sensitivity
- Power Source: 100 VAC ~ 265 VAC
- Power Frequency: 50 / 60Hz
- Installation Height: 1.2 m ~ 1.6 m
- Detection Distance: 7 m ~ 10 m (<27℃)
- Detection Range: < 150°
- Detection Speed: 0.6 ~ 1.5m/s
- Incandescent / Halogen: 1100 W / 220 VAC(5A), 2200 W / 220 VAC(10A)
- Fluorescent / Ballast / LED: 500 W / 220 VAC(5A), 1000 W / 220 VAC(10A)
- Working Humidity: < 93%RH
- Working Temperature: -20 ~ +40℃
Ready to Use, Easy to Operate
Factory Setting
- Occupancy Mode
- Time Delay: 1min
- Light Sensor Value: 25Lux
Customization
- Working Mode: Vacancy Mode, Occupancy Mode, Occupancy without Light Sensor Mode, ON/OFF Mode
- Time Delay: 15s, 1min, 3mins, 5mins, 15mins, 30mins
- Sensitivity Adjustment: low sensitivity, high sensitivity
- Light Sensor Value: OFF, 15Lux, 25Lux, 35Lux
- Factory Settings Reset
Applications
Bathroom
Auto on/off occupancy sensor mode is the ideal energy-saving lighting mode for home bathrooms where we enter and leave quite often. With our hands often wet or dirty, the auto on/off lighting saves us a lot of time and helps keep your house clean.
Laundry Room
With a ceiling mount occupancy sensor, you don’t have to struggle to touch the light switch while arms-full. The RZ036 series ceiling mount occupancy sensor will turn on the light when you enter the laundry room and turn the light off when you leave.
Home Garage
When entering and leaving the garage, the occupancy sensor can automatically turn the light on and off to spare us time and effort especially when our arms are full.
