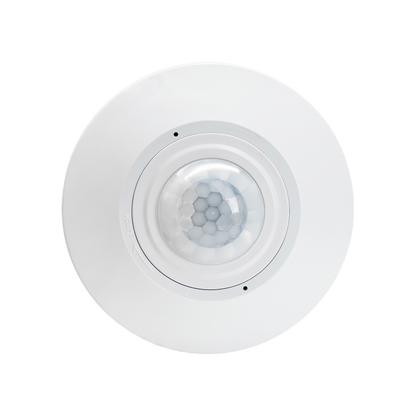

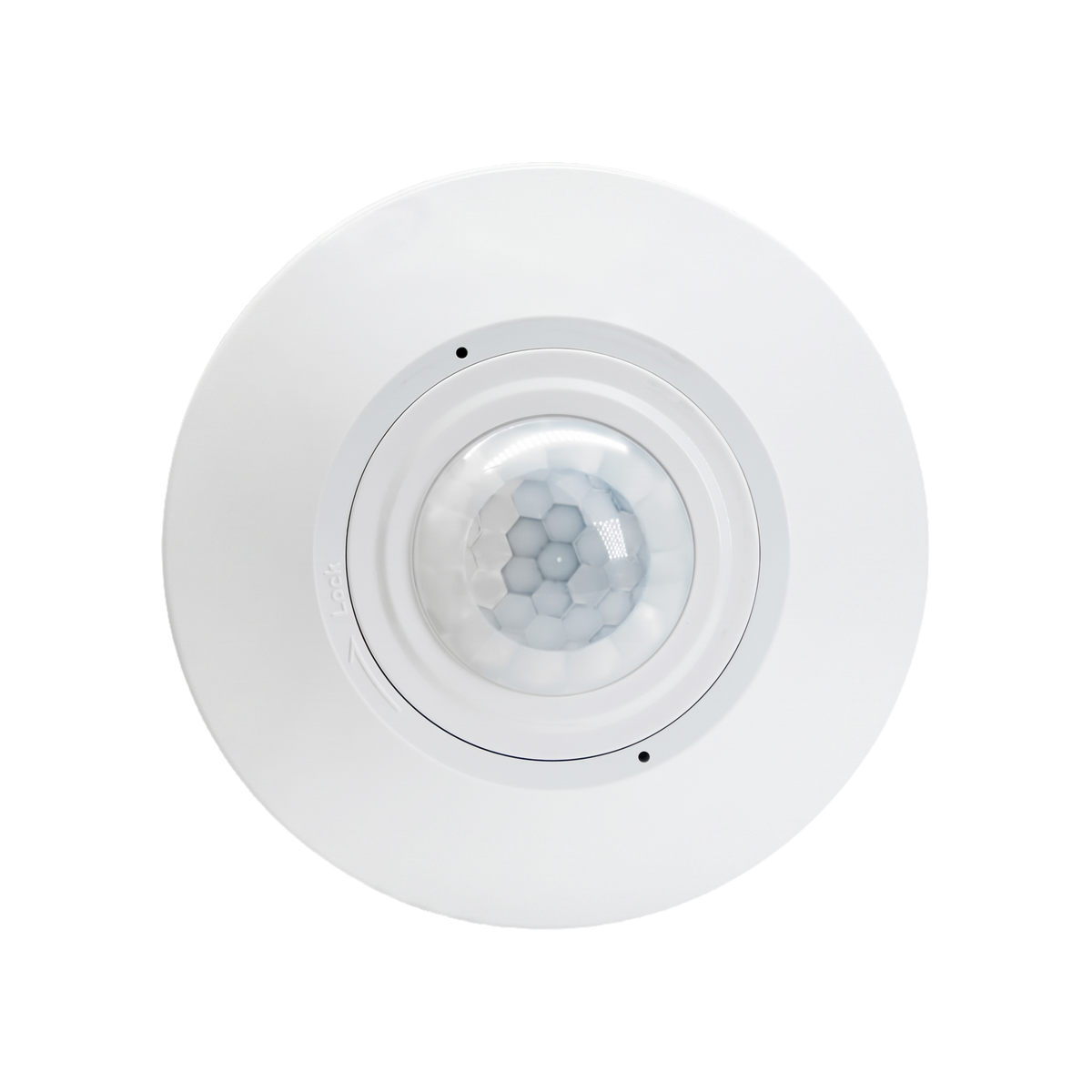

• RZ036 ceiling mount motion sensor - front view
  • RZ036 User Guide

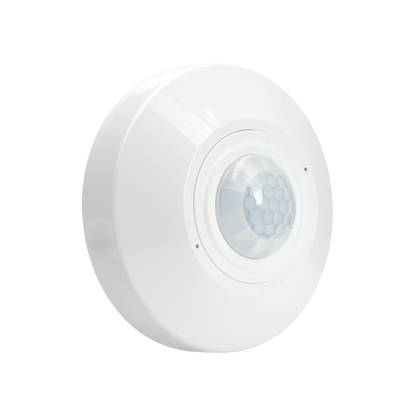

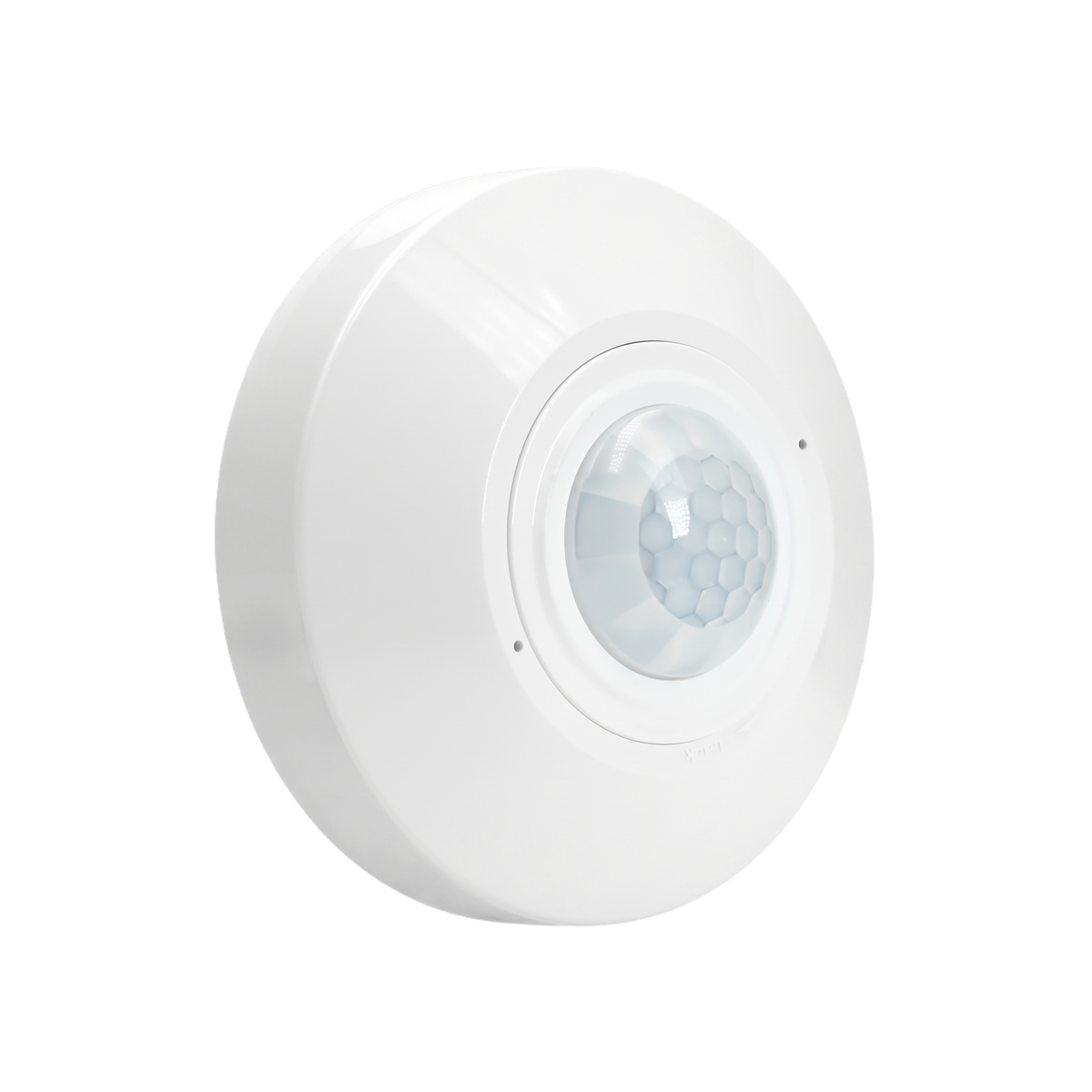

  • RZ036 ceiling mount motion sensor - side view

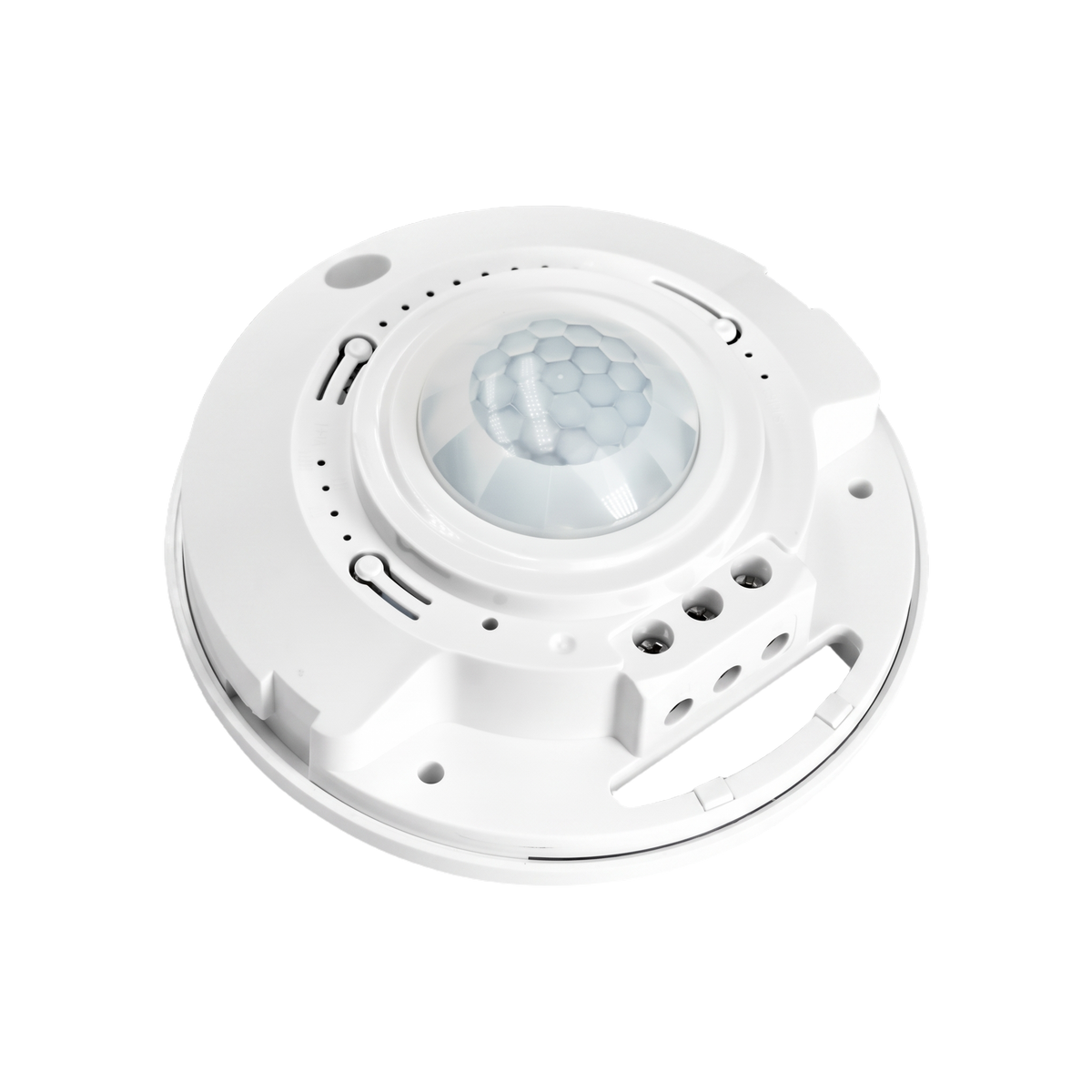

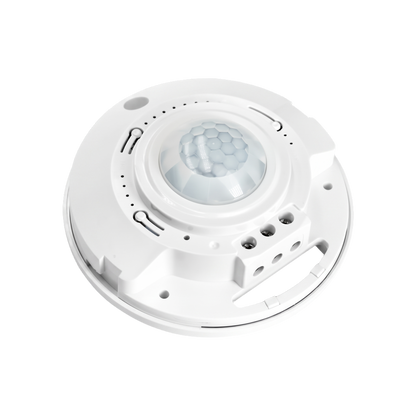

  • RZ036 ceiling mount motion sensor - settings side, cover off

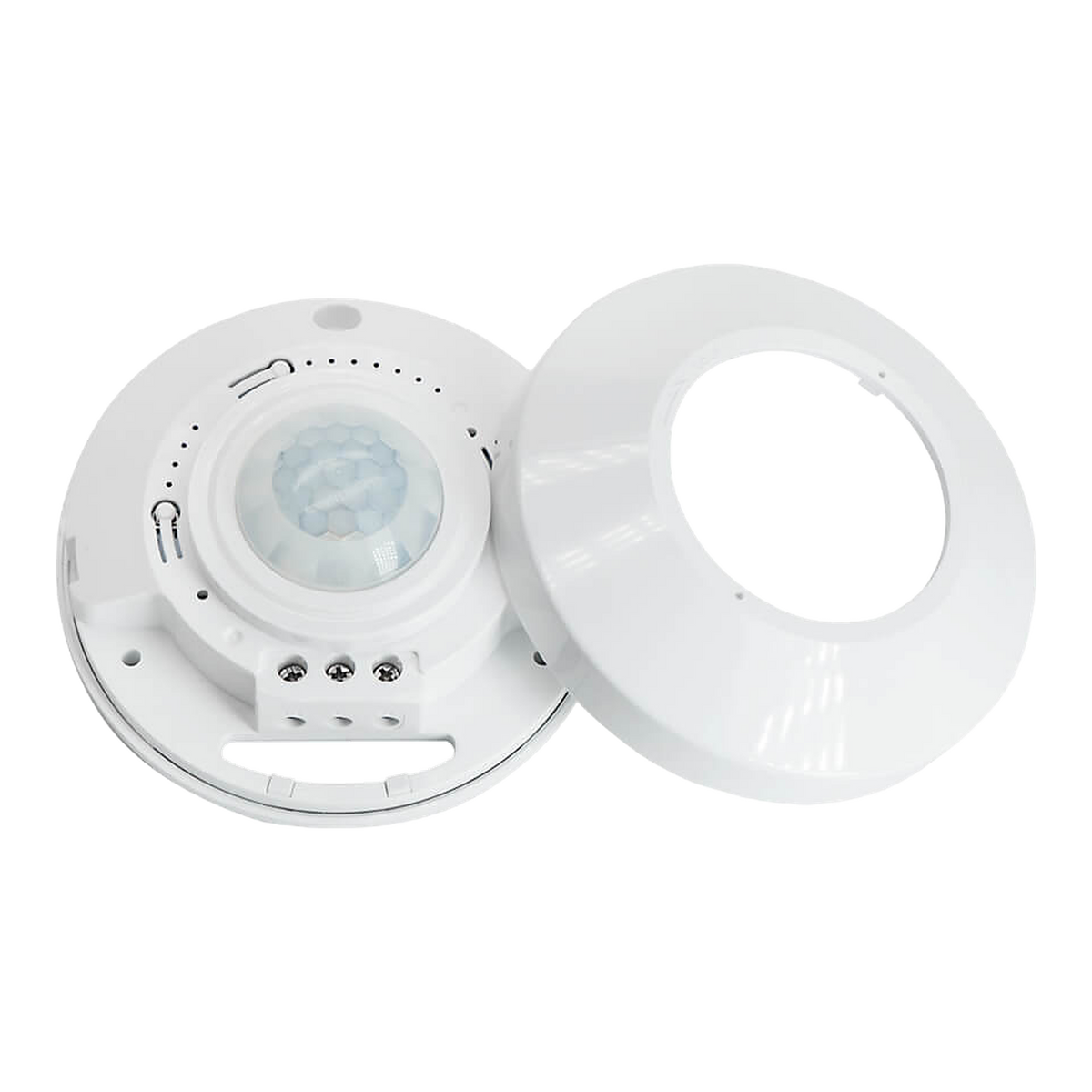

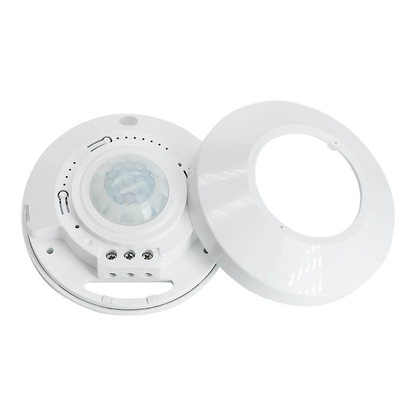

  • RZ036 ceiling mount motion sensor - settings side with cover
1 5

Rayzeek RZ036 Ceiling Mount Motion Sensor

Rayzeek RZ036 Ceiling Mount Motion Sensor

360° Ceiling-Mount Motion Detection for Large Zones

Surface-mount 360-degree ceiling PIR motion sensor engineered for open commercial spaces, storage rooms, and classrooms. Features adjustable time delay and ambient light thresholds for reliable zone lighting automation.

  • ✓360° Full-Circle Ceiling Coverage
  • ✓Adjustable Delay (15s–30min) & LUX
  • ✓Up to 2200W INC / 1000W LED
  • ✓100–265VAC or DC 12/24V Options
$17.00 USD
$17.00 USD
Sale Sold out

Power Options: High-voltage AC models (100–265VAC) and low-voltage DC model (12V–24VDC) available. Select the appropriate variant for your electrical supply.

VOLTAGE & CURRENT: DC 12/24V (Low-voltage)
DON'T MISS THESE PICKS
Rayzeek RZ021 Wall Mount Motion Sensor, US Standard
Rayzeek RZ021 Wall Mount Motion Sensor, US Standard
+$16.00
In-Wall PIR Switch Learn More ↗
Rayzeek RZ061 Motion Senosr Plug (US Standard)
Rayzeek RZ061 Motion Senosr Plug (US Standard)
+$22.00
Wireless Motion Plug Learn More ↗
Rayzeek RZ050 Air Conditioner Motion Sensor Controller
Rayzeek RZ050 Air Conditioner Motion Sensor Controller
+$27.00
PIR AC Controller Learn More ↗
Bulk & Custom Orders
Bulk Inquiry
Estimated delivery: Nov 5 – Nov 12 (7–14 days)
1-Year Warranty · No voluntary returns All sales final to maintain product integrity. No voluntary returns. See Return Policy. · Taxes not included Prices exclude import duties & taxes. Tax handling and customs assistance available upon request.
View full details

Smart Motion Lighting. Hands-Free Convenience.

Our 360° ceiling motion sensor automatically lights up your space when you need it and saves energy when you don't. Enjoy customizable, effortless lighting control for both high and low voltage applications.

FEATURES
  • Complete 360° Detection: Senses motion from any direction for full room coverage.
  • Advanced PIR Sensor: Utilizes Passive Infrared technology for reliable and stable motion detection.
  • Fully Adjustable: Easily customize time delay (15s-30min), motion sensitivity (High/Low), and ambient light (LUX) activation threshold.
  • Energy Saver: Can reduce lighting energy consumption by up to 70%.
  • Simple Button Settings: Convenient push-button adjustments for all parameters right on the device.
SPECIFICATION
  • Models & Max Load:
    • RZ036-5A (High Voltage):
      • Incandescent/Halogen: 500W / 1100W (at 110VAC / 220VAC)
      • Fluorescent/Ballast/LED: 250W / 500W (at 110VAC / 220VAC)
    • RZ036-10A (High Voltage):
      • Incandescent/Halogen: 1000W / 2200W (at 110VAC / 220VAC)
      • Fluorescent/Ballast/LED: 500W / 1000W (at 110VAC / 220VAC)
    • RZ036-12/24V (Low Voltage):
      • Incandescent/Halogen: 240W (at 12/24VDC)
      • Fluorescent/Ballast/LED: 120W (at 12/24VDC)
  • Detection Range: 360°
  • Detection Distance: 8-12 meters (clearance, at <27°C)
  • Adjustable Time Delay: 15s, 30s, 1min, 3min, 5min, 10min, 30min (Default: 1min)
  • Adjustable Light Sensor (LUX) Level: 15Lux, 25Lux, 35Lux, or OFF (sensor activates day & night) (Default: 25Lux)
  • Power Source:
    • High Voltage Models (5A, 10A): 100VAC ~ 265VAC, 50/60Hz
    • Low Voltage Model (12/24V): 12VDC ~ 24VDC
  • Recommended Installation Height: 2.5 - 3.5 meters
  • Operating Temperature: -10°C to +40°C
  • Working Humidity: < 93%RH
  • Motion Detection Speed: 0.6 - 1.5 m/s
PRODUCT OVERVIEW

The Rayzeek RZ036 Ceiling Motion Sensor Switch is your smart solution for automated lighting. Available in both high-voltage (AC) and low-voltage (DC) models, this device uses advanced Passive Infrared (PIR) technology to detect motion in a full 360-degree circle, automatically turning your lights on when you enter an area and off after a user-set period of no movement.

It's designed for straightforward ceiling installation. You can easily adjust the time delay for lights to stay on, the motion detection sensitivity, and the ambient light level (LUX) at which the sensor will activate the lights. This makes it perfect for hallways, closets, garages, utility rooms, or any space where hands-free lighting improves convenience and helps save significant energy.
